Technical Specifications of Driveways Road Asphalt Paver
| Weight & Dimensions | |
| Operating Weight (Cece) | 1450kg |
| Machine Length | 3015mm |
| Machine Width | 1220mm |
| Hopper Length | 1850mm |
| Max.Operating Weight | 1520kg |
| Transport Length | 1090mm |
| Machine Height | 1495mm |
| Operator Platform Height | 475mm |
| Engine & Drivetrain | |
| Engine | KD1100F |
| Engine Cooling System | Air-cooled |
| Undercarriage | Wheeled |
| Directional Wheel | 370×100 |
| Steering Type | Hydraulic |
| Emissions | EU Stage V / US EPA |
| Rated Power | 9.5 kW |
| Wheels | 400 × 127 |
| Transmission Type | Hydrostatic |
| Internal Turning Radius | 950 mm |
| Performance | |
| Max.Theoretical Paving Capacity | 35T/h |
| Transfer Speed | 0-3.4Km/h |
| Standard Paving Width | 900-1450mm |
| Min.W/ Reduction Plates | 300mm(0.3m) |
| Max Thickness | 5-100mm |
| Max.Paving Speed | 25m/min |
| Max.W/Extensions | 1450mm(1.45m) |
| Screed Type | Standard heating, optional vibration |
| Material Supply | |
| Hopper Capacity | 0.7m³ |
| Conveyor Belt | Reversible (forward and reverse) |
| Auger | Automatic |
| Tank Capacities | |
| Fuel | 5.5L |
| Hydraulic Oil | 18L |
Product Features

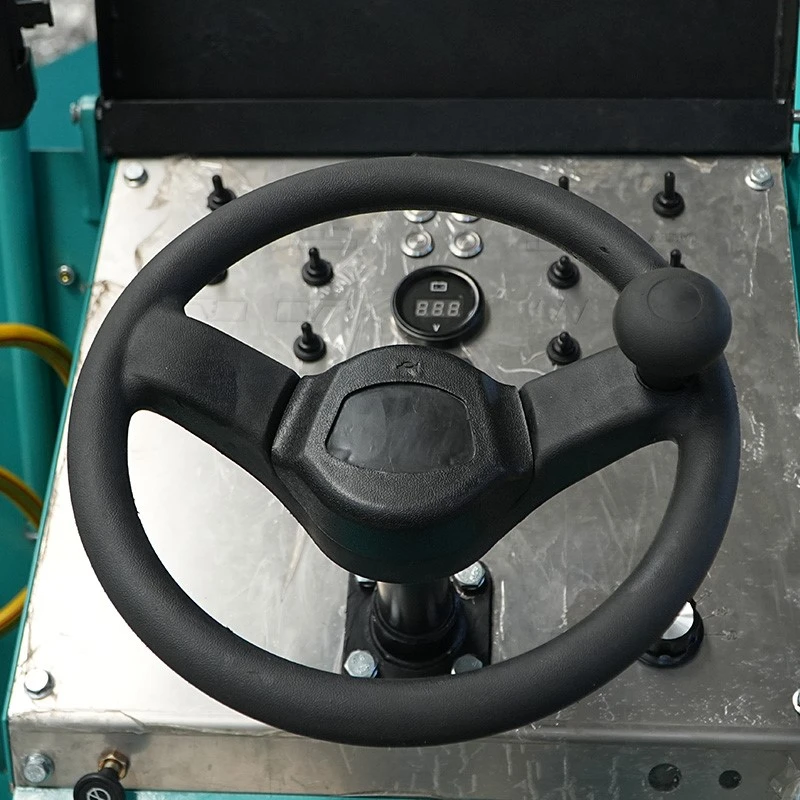

Operator Console
The control interface is designed to be highly intuitive, featuring a steering wheel and button controls that make operating the machine feel just like driving a car. With just a brief training session, even a novice can operate it skillfully - eliminating the need to hire specialized veteran operators, thereby saving on labor costs and providing peace of mind.

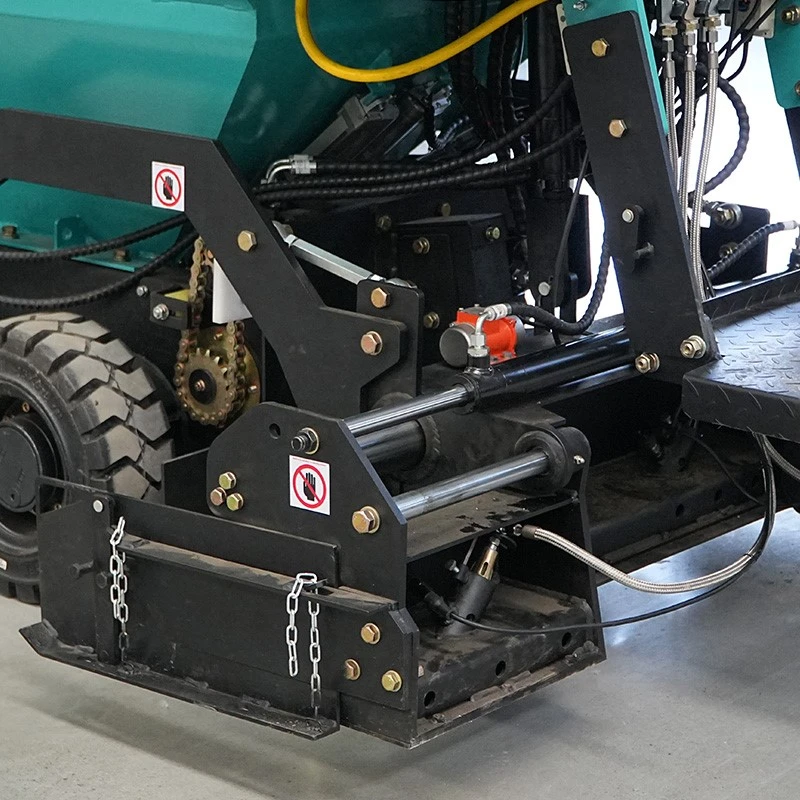

Screed
Equipped with a hydraulically extendable screed, the paving width can be adjusted from 0.3 meters to 1.45 meters - all without needing to stop the machine. The resulting pavement is remarkably flat and compact, delivering results far superior to manual paving methods.

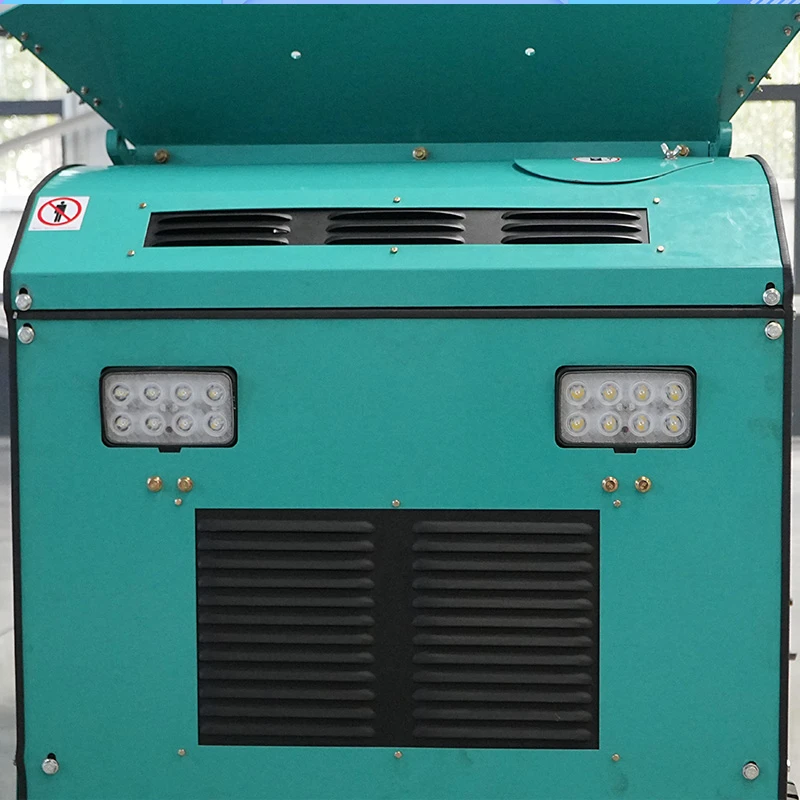

Lighting
The driveways road asphalt paver is fitted with ample lighting fixtures, ensuring clear visibility even in low-light conditions or during nighttime construction. This not only guarantees high-quality workmanship but also significantly enhances operational safety.

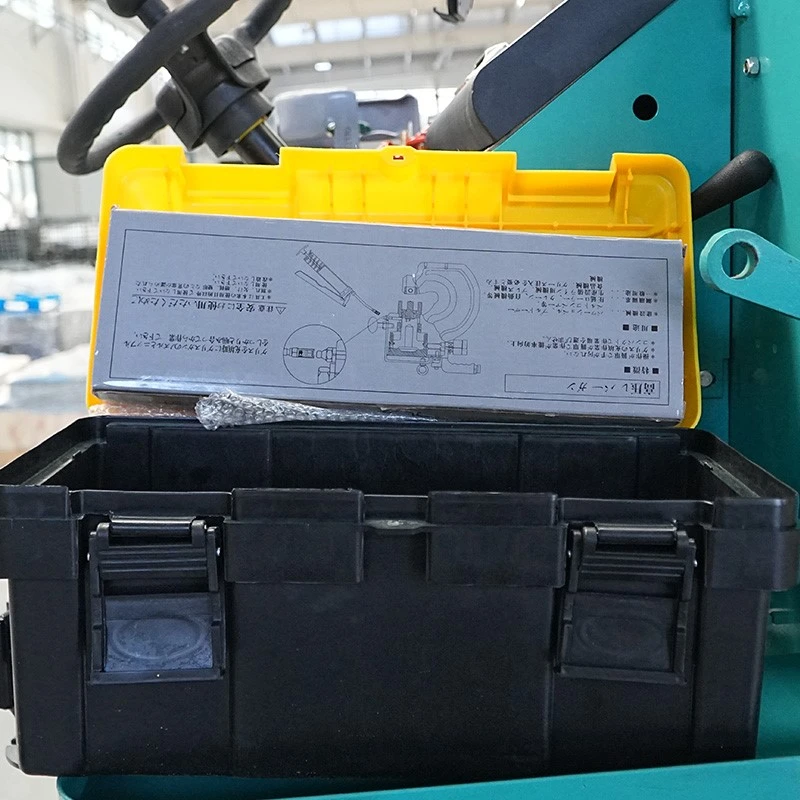

Toolbox
The machine features a built-in toolbox, keeping frequently used tools and spare parts immediately accessible. Whether you need to make adjustments or perform minor repairs during a job, you won't have to waste time searching around - saving both time and effort.
Application Scenarios
Municipal road construction and maintenance
Parking Lot Lanes & Sidewalks
Rural road paving and rehabilitation
Trenches and utility paving
Frequently Asked Questions
Q: What is the minimum paving width for this paver?
A: The M155 series can pave down to a minimum width of 0.3 meters, making it perfectly suited for paving standard residential driveways.
Q: Can this machine operate on slopes?
A: Yes, it can. The machine is equipped with traction control and stability assistance systems, allowing it to handle slopes of up to 15 degrees while maintaining stable and secure operation.
Q: How long does it take for a single operator to pave a standard driveway?
A: For a single operator working alone - from preparation through to completion - paving a medium-sized driveway (approximately 50 to 100 square meters) can be accomplished in under 3 hours.
Q: What if I'm a beginner and don't know how to use it? Is training provided?
A: Yes, it is. ORCA Company provides a comprehensive suite of digital tutorials and operation manuals to ensure that even beginners can effectively utilize the equipment and maximize its performance capabilities.
Q: What kind of after-sales support is available?
A: We offer a 2-year warranty. You are welcome to contact us at any time regarding technical issues (we are available online 24 hours a day). We provide installation and maintenance videos and manuals, and genuine spare parts are readily available.
Q: Can this equipment handle materials such as crushed stone or stabilized soil?
A: Yes, it can. The M155 Driveways Road Asphalt Paver demonstrates excellent compatibility with a wide variety of materials; the specific materials used can be flexibly selected to suit the requirements of your particular project.
