From narrow city streets and residential driveways to bicycle lanes, parking lots, factory roads, and rural routes - the M155 can pave them all, offering exceptional flexibility and practicality.
Send Inquiry
Description
Technical Parameters

In-Stock Availability

Customization Supported

Quality Guaranteed

Rapid Delivery

After-Sales Service



Video Display





Products Specifications of Small Asphalt Wheeled Paver





Hydraulic System
Tandem plunger pump Displacement 21ml/r
Rated pressure 17MPa
Maximum pressure 26MPa
Rated speed 3600r/min
Gear pump pressure 21MPa
Travel motor Likechuan 02 single-speed travel motor With Brake
Scraper motor Dali BRM-315 scraper motor
Hydraulic control
solenoid valve
Chint
Steering gear Dali BZZ5-E80
Multi-way valve Fully hydraulic
solenoid valve
Hydraulic pipe Continental
Hydraulic thread Sugeqiang standard
thread
Cylinder NOK sealing system
cylinder
Hydraulic oil Kunlun international standard
hydraulic oil



Products Features

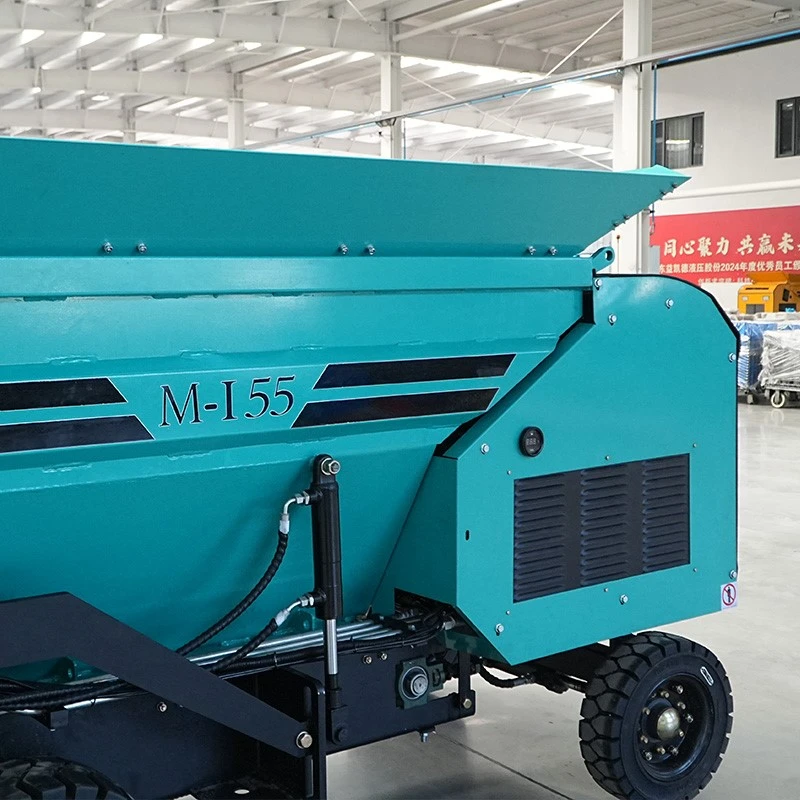

The Whole Machine



Our units feature automated welding and precision CNC machining. Before leaving the factory, every machine undergoes rigorous performance testing under simulated real-world conditions to ensure trouble-free operation on the job site.

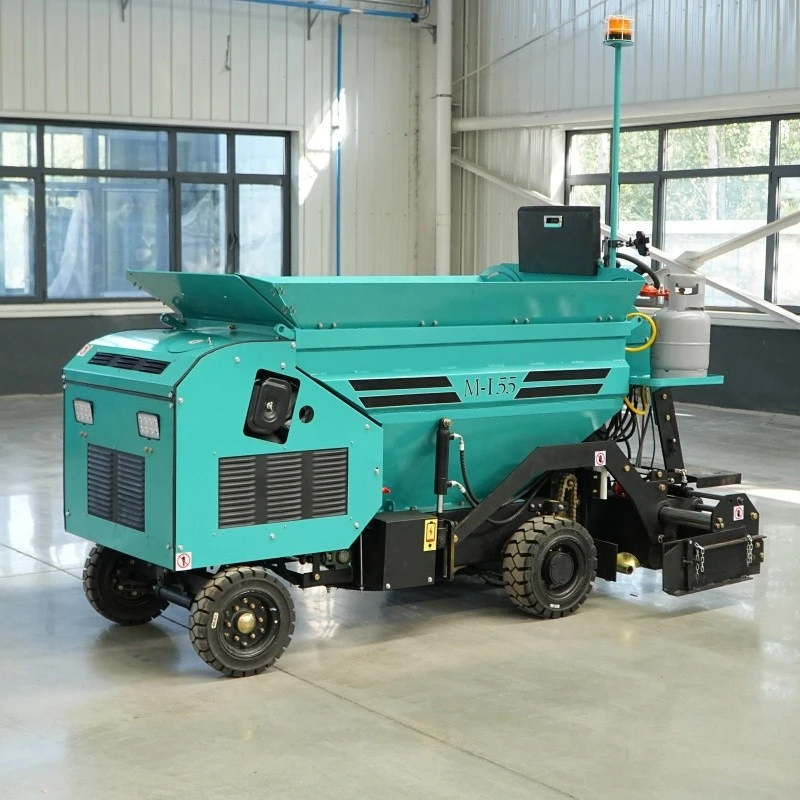

Universal Compact Paver

 Operator Platform



The platform features a vibration-dampening design and a textured, non-slip surface, ensuring stability and preventing slippage-even on rough terrain or during rainy weather.

.webp

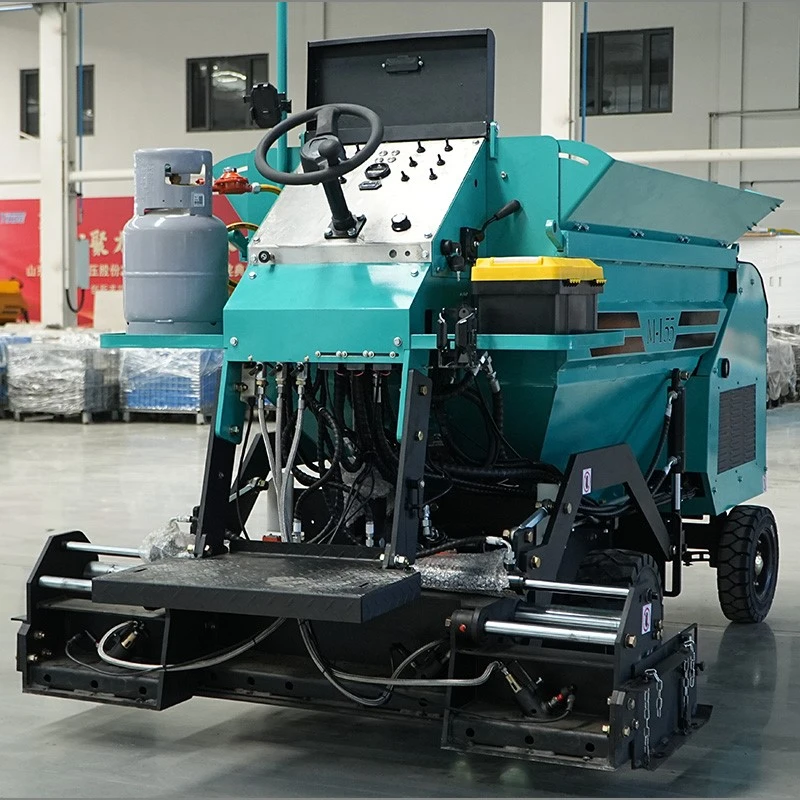

  Control Console



The controls are intuitive and easy to understand at a glance. A dedicated protective cover is also included; simply close it when not in use to shield the console from dust and debris, ensuring it remains clean and ready for the next startup.

.webp

 Four-Wheel Drive System



With its 4WD capability, the small asphalt wheeled paver delivers excellent traction and maneuverability-whether operating on muddy ground, sandy terrain, or uneven surfaces-significantly reducing the risk of getting stuck.


Modular Layout



All components feature a modular layout, making maintenance and servicing remarkably convenient. If a specific part requires replacement, you can simply detach the corresponding module without the need for extensive disassembly of the entire machine.




Application Scenarios



  • Urban Road Maintenance: Ideal for repairing narrow streets and resurfacing roads in older city districts-perfect for locations where larger machinery cannot access.
  • Residential Road Paving: Efficiently paves driveways and internal roadways within residential communities, delivering a high-quality, aesthetically pleasing finish.
  • Bicycle and Pedestrian Paths: Paves non-motorized pathways with a smooth, level surface that ensures a comfortable experience for both walkers and cyclists.
  • Parking Lot Construction: Suitable for paving parking areas of all sizes-from small commercial lots to large public facilities-offering flexibility without requiring excessive space.
  • Internal Factory Roads: Paves access roads and thoroughfares within industrial parks, creating a robust and durable surface capable of withstanding the constant traffic of light trucks and utility vehicles.
  • Rural Road Upgrades: A highly cost-effective solution for the repair and upgrading of rural roads with lower traffic volumes.





.jpg



Case Study



Client: Berlin, Germany – Municipal Engineering Contractor



Project: Renovation of aging urban roads, construction of bicycle lanes, and minor road repair projects within residential areas.



Challenge: The client's existing equipment was bulky and complex to operate; it could not access the narrow streets and alleys of the historic city center, and it suffered from high fuel consumption and excessive maintenance costs.



Solution: Two ORCA M155 compact wheeled asphalt pavers



Results Achieved:



  • Increased Efficiency: For an average 80-square-meter lane, a single operator can now complete the entire job in under three hours-a task that previously required two workers and took two full days.
  •
  • Improved Quality: The paved surface now exceeds the client's requirements for both flatness and compaction density, effectively resolving the issue of unevenness typically associated with manual jointing.
  •
  • Significant Cost Reduction: In addition to substantial savings on labor costs, fuel consumption is approximately 20% lower compared to older equipment. Furthermore, thanks to ORCA's global logistics network, spare parts can be delivered within 48 hours, thereby drastically minimizing downtime.



Client Testimonial



The company's project manager stated: "The M155 Small Asphalt Wheeled Paver has transformed our operations-shifting us from a state of 'inaccessibility, slow progress, and high costs' to one where we can 'go anywhere, complete multiple jobs in a single day, and save on fuel and labor while enjoying complete peace of mind.' As a result, our volume of repeat business is steadily increasing."



FAQ



Q: What are the main advantages of a wheeled paver over a tracked one?

A: Wheeled pavers offer faster travel speeds between job sites, better road-friendly mobility, and lower transportation costs. They are ideal for projects requiring frequent repositioning, such as multiple residential driveways or urban patchwork jobs, whereas tracked pavers are better for soft or uneven ground.

Q: What is the minimum paving width this machine can achieve?

A: Most small wheeled pavers can pave as narrow as 0.25 m (with cut-off shoes) and typically range from 0.8 m up to 1.8 m in basic width, with extensions available to reach wider configurations. This makes them highly suitable for bike paths, sidewalks, and trench backfilling.

Q: Can this paver handle both hot mix and warm mix asphalt?

A: Yes. These machines are fully compatible with standard Hot Mix Asphalt (HMA) and Warm Mix Asphalt (WMA) . For best results, ensure the screed is properly heated before operation to prevent material sticking and ensure a smooth, even mat surface.

Q: How is the paving thickness controlled?

A: Paving thickness is typically adjusted via the screed's depth control mechanism (manual or hydraulic), combined with the machine's travel speed and material feed rate. Some models also offer optional automatic grade and slope control systems for enhanced precision on larger or more demanding projects.

Q: What daily maintenance is most critical for this paver?

A: Three key tasks: (1) Thorough cleaning – remove all asphalt residue from the hopper, conveyors, and screed using a release agent.
(2) Lubrication – grease all bearings, pivot points, and track/wheel hubs daily.
(3) Tire inspection – check air pressure and tread condition to ensure stable paving and safe road travel.
