Product Details

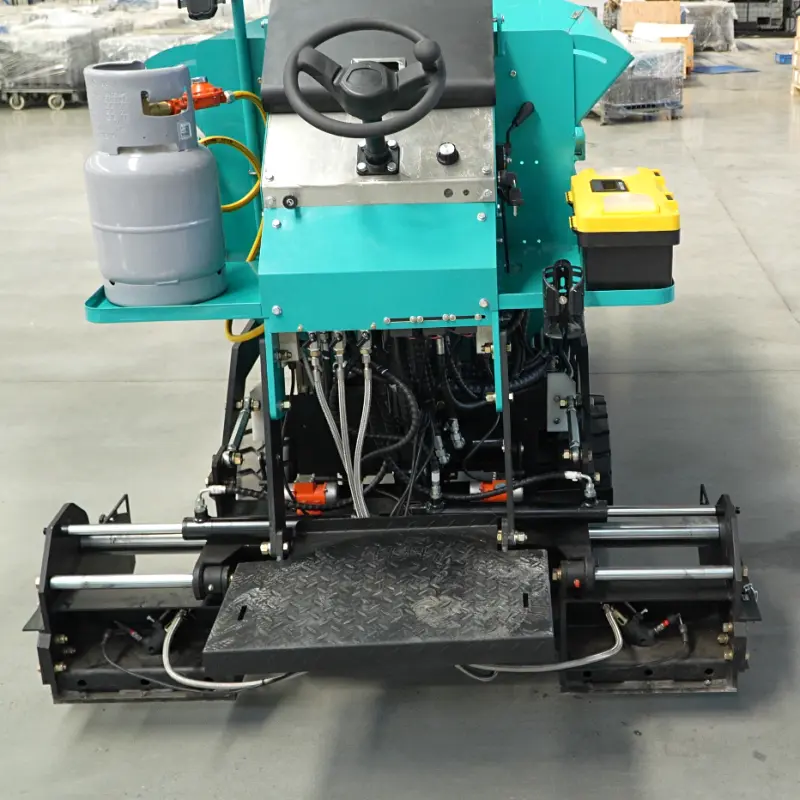

Operator Platform
The operator platform is situated directly behind the screed, offering a crystal-clear, panoramic view of the surrounding area. A single operator standing on the platform can effortlessly control the machine; there is no need for a second crew member.
Control Console
All switches and controls feature intuitive graphic symbols, making their functions immediately obvious at a glance-no need to read any text. Of course, a comprehensive printed instruction manual is also provided for your reference.
Chassis
The rear two wheels serve as the drive wheels, while the front two act as guide wheels; the front wheels are designed to oscillate vertically. This wheeled chassis configuration ensures exceptionally smooth and effortless maneuvering, particularly when navigating tight turns.
Hydraulic Transmission
The machine utilizes a hydrostatic transmission system. This robust system efficiently and faithfully transfers the full power of the diesel engine directly to the wheels.
Technical Specifications
| Performance | |||
| Max.Theoretical Paving Capacity | 35t/h | Max Thickness | 5-100mm |
| Transfer Speed | 0-3.4km/h | Max.Paving Speed | 25m/min |
| Standard Paving Width | 900-1450mm | Max.W/Extensions | 1450mm |
| Min.W/ Reduction Plates | 300mm | Screed Type | Standard Heating, Optional Vibration |
| Tank Capacities | |||
| Fuel | 5.5L | Hydraulic Oil | 18L |
Case Study
Client: Mr. Li (Business Owner)
Project: Park Walking Path Construction
Challenge:
The walking paths were narrow, winding, and required paving around numerous flowerbeds. Large-scale pavers could not access the site, while manual paving was both slow and prohibitively expensive.
Solution:
The M-155 Small Paving Equipment (Ideal for Driveways and Paths)
Outcome:
Mr. Li adjusted the paving width directly to 1.1 meters-a perfect match for the path dimensions. Working solo, he operated the machine continuously for three days, paving over 2,000 meters of roadway. The resulting surface was exceptionally smooth, with a consistent thickness maintained precisely at 5 centimeters.
Mr. Li's Own Words:
"This machine is the real deal. It fits into narrow spaces and maneuvers easily around flowerbeds. I can operate it all by myself-just turn the steering wheel and go; there's no need to hire a specialized expert. The paved surface is far smoother than what could be achieved manually-the client took one look and just kept nodding in approval."
