Engine
Equipped with a 9.5 kW air-cooled engine, it delivers ample power for the job. It also meets strict emission standards, complying with both EU Stage V and US EPA Tier 4 regulations.
Chassis
Featuring a four-wheel configuration: the two rear wheels serve as drive wheels, while the two front wheels-mounted on a steering bogie-handle steering. This design ensures stable travel and allows for smooth, effortless tight turns.
Hopper
The hopper has a capacity of 1.65 tons, making it easy for small dump trucks to discharge material directly into it.

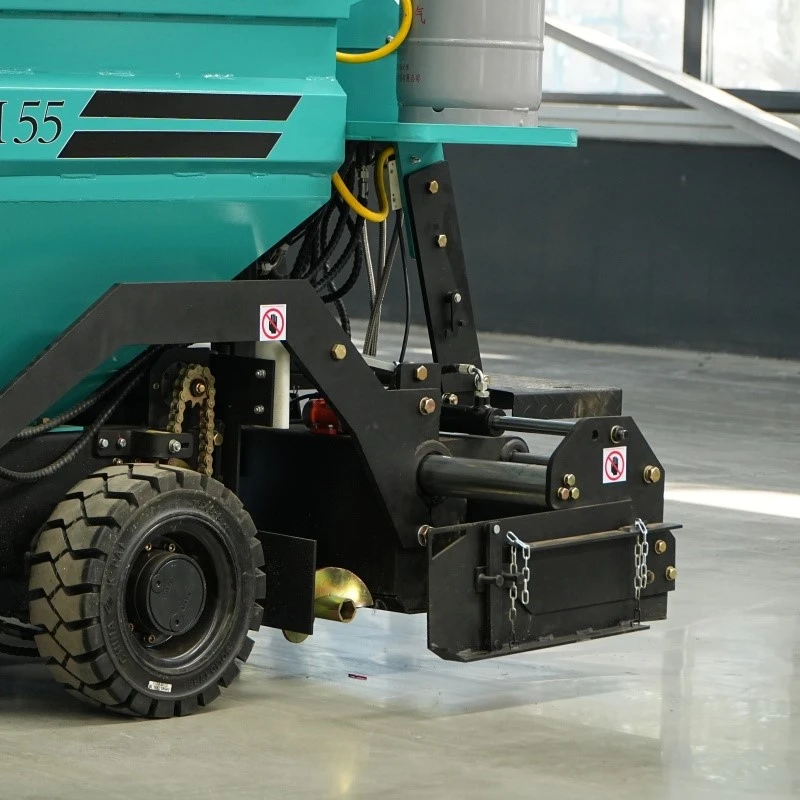

Screed
Heated by LPG (liquefied petroleum gas), the screed features an electronic ignition system that fires up with the simple push of a button, ensuring safe and convenient operation.
Products Description
| Performance | |||
| Max.Theoretical Paving Capacity | 35t/h | Max Thickness | 5-100mm |
| Transfer Speed | 0-3.4km/h | Max.Paving Speed | 25m/min |
| Standard Paving Width | 900-1450mm | Max.W/Extensions | 1450mm |
| Min.W/ Reduction Plates | 300mm | Screed Type | Standard Heating, Optional Vibration |
| Tank Capacities | |||
| Fuel | 5.5L | Hydraulic Oil | 18L |
Customer Reviews
Tony, Sydney, Australia
"I used this little machine to pave over a kilometer of cable trenches. The trenches were only half a meter wide-the machine fit right in and got the job done. I handled the whole thing myself without needing to hire any extra help. The paving came out very smooth; when the power company came to inspect it, they took one look and signed off immediately. The next time I have a job like this, I'll definitely use it again."
Mike, Florida, USA
"The sidewalk along the old road in our community is only 1.5 meters wide, so our large paving machines couldn't fit in at all. This universal compact paver, at just 1.2 meters wide, drove right in with ease. Plus, a single tank of fuel lasted the entire workday, saving us a good amount on transport and fuel costs. The finished surface turned out much smoother than I had anticipated."
Pierre, Lyon, France
"I needed to pave a narrow footpath for visitors through my vineyard-it was quite tight, with trellises lining both sides. Amazingly, this machine was able to drive right through without crushing any of the vine roots in the soil. Once the paving was complete, the ground was perfectly smooth and level; t
FAQ
Q: What advantages do wheeled pavers offer compared to tracked models?
A: The Universal Compact Paver operates more smoothly on hard surfaces, facilitates easier site-to-site transport, and is less complicated to maintain. It is particularly well-suited for urban construction sites characterized by smaller-scale projects and multiple work locations.
Q: Can the paving width be adjusted while the machine is in operation?
A: Yes. The Compact Paver features a hydraulically extendable screed, allowing the operator to adjust the paving width directly from the control platform without needing to stop the machine.
Q: In addition to asphalt, can this machine pave other materials?
A: Yes. It is capable of paving various materials, including graded crushed stone and stabilized soil, making it versatile enough to handle a wide range of construction tasks.
Q: Is specialized training required to operate this machine?
A: No. The Compact Paver is designed to be highly user-friendly and easy to master. We provide detailed instructional videos and operation manuals; furthermore, we can dispatch personnel to the job site to provide on-site training, ensuring that operators can begin working immediately upon arrival.
Q: How do you provide support to your international clients?
A: We maintain a global spare parts supply network and offer remote troubleshooting assistance. Additionally, we have established partnerships with service centers in various regions, ensuring that any technical issues can be resolved promptly and efficiently.
