Despite its small stature, this asphalt equipment machines packs a powerful punch, capable of accessing sidewalks and narrow lanes with ease. Width adjustments require no tools, and it lays smooth, level surfaces regardless of thickness. Its components are standardized and easy to service; a single operator is all that is needed, making it a highly versatile and user-friendly machine suitable for any crew.

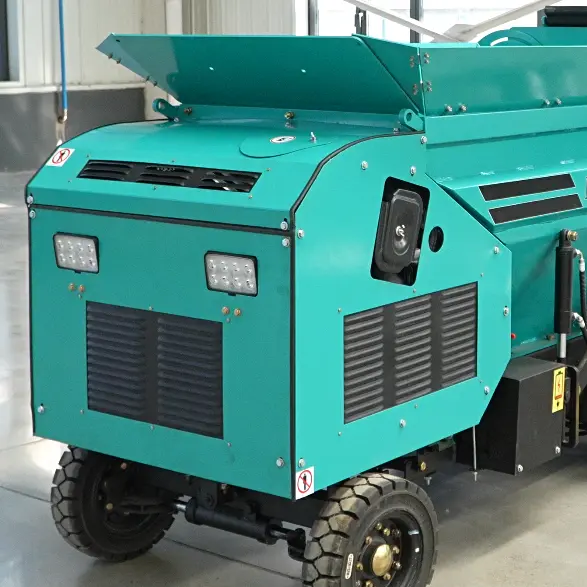

Engine and Cooling System
Air-cooled engine: Specifically designed for compact machinery of this type, the airflow path is direct and unobstructed, preventing the machine from re-ingesting its own exhaust heat.
Cooling vents are positioned in multiple directions; their accessible locations make them easy to wipe down or clear with compressed air, ensuring they remain free of blockages even in the dustiest construction environments.
Drive Motors
Equipped with drive motors from reputable domestic or international brands, featuring integrated braking systems for enhanced safety and control.
Easy to Repair and Replace
The asphalt equipment machines features a straightforward mechanical structure, utilizing standard, off-the-shelf components rather than proprietary custom parts. Its hydraulic fittings are also standardized, allowing overseas customers to easily source replacements and find local technicians for repairs.
Compact Dimensions
Length: 3015 mm; Width: 1220 mm; Height: 1495 mm. Its compact size allows it to access sidewalks, narrow alleys, and tight corners with ease.
Screed
Comes standard with a heating system; a vibration function is available as an optional upgrade. This ensures a smooth, level finish with excellent compaction density.

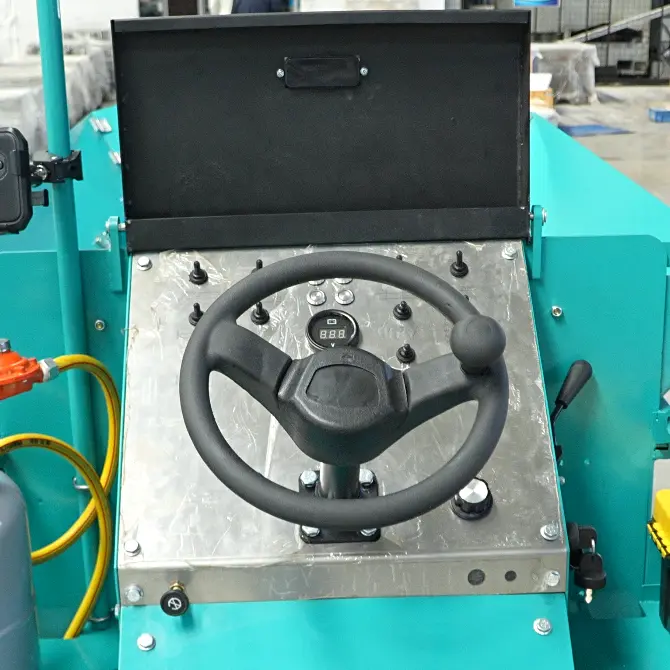

Single-Person Operation
Features electric starting and steering-wheel control for directional changes. It is safe, intuitive, and can be easily operated by just one person.
Engine
Diesel-powered, delivering 9.5 kW of power. Compliant with strict emission standards: EU Stage V and US EPA. It provides ample power for the task while meeting environmental regulatory requirements.
Tool-Free Width Adjustment
Paving width is adjustable from 0.3 meters to 1.45 meters, with a maximum paving speed of 25 meters per minute. Adjustments can be made manually-no wrenches or pry bars required.
Hassle-Free Operation
Thanks to its simple mechanical design, the machine requires minimal downtime for maintenance and repairs.
Product Specifications
|
Hydraulic System |
|||
|
Displacement |
21ml/r |
Hydraulic control solenoid valve |
Chint |
|
Rated pressure |
17MPa |
Steering gear |
Dali BZZ5-E80 |
|
Maximum pressure |
26MPa |
Multi-way valve |
Fully hydraulic |
|
Rated speed |
3600r/min |
Hydraulic pipe |
Continental |
|
Gear pump pressure |
21MPa |
Hydraulic thread |
Sugeqiang standard thread |
|
Likechuan 02 single-speed travel motor |
With brake |
Cylinder |
NOK sealing system cylinder |
|
Dali BRM-315 scraper motor |
|
Hydraulic oil |
Kunlun international standard hydraulic oil |
Frequently Asked Questions
What types of asphalt equipment machines do you primarily sell?
+
-
We mainly specialize in compact pavers, road rollers, and dumpers. We also offer conveyor systems and asphalt recycling equipment. Regardless of the project scale, we can provide a complete set of machinery to meet your needs.
Can this paver lay both hot-mix and warm-mix asphalt?
+
-
Yes, it can. It is capable of laying hot-mix asphalt, warm-mix asphalt, and cold-patch repair materials.
Do you provide training on how to operate the machine after purchase?
+
-
Absolutely. We offer video tutorials, online guidance, and comprehensive user manuals-we guarantee that you will master its operation.
What is the warranty coverage for the machine?
+
-
All machines come with a standard factory warranty; we take full responsibility for any quality-related issues. For added peace of mind, you also have the option to purchase an extended warranty service.
Can I customize the machine's configuration to suit the specific conditions of my job site?
+
-
Yes, certainly. For instance, we can discuss options such as installing a specific screed, adding automated features, or even applying your company's logo to the machine.
Where can I purchase spare parts in the future?
+
-
You can purchase genuine original parts directly from us by contacting us via email or WhatsApp through our website, or simply by giving us a call.
