Wheeled Remote Controlled Lawn Mower

Wheeled Remote Controlled Lawn Mower

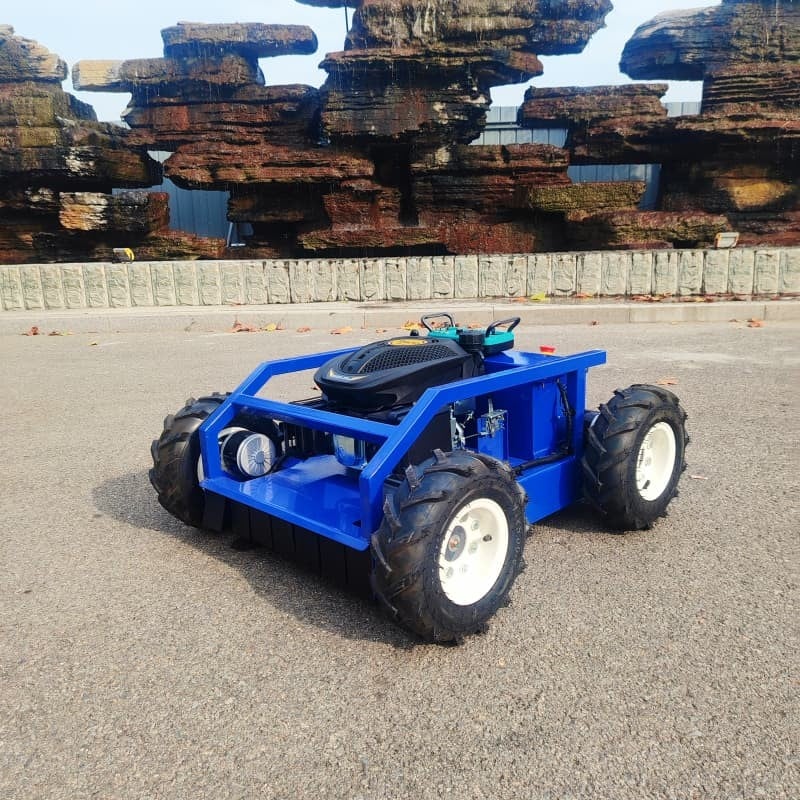

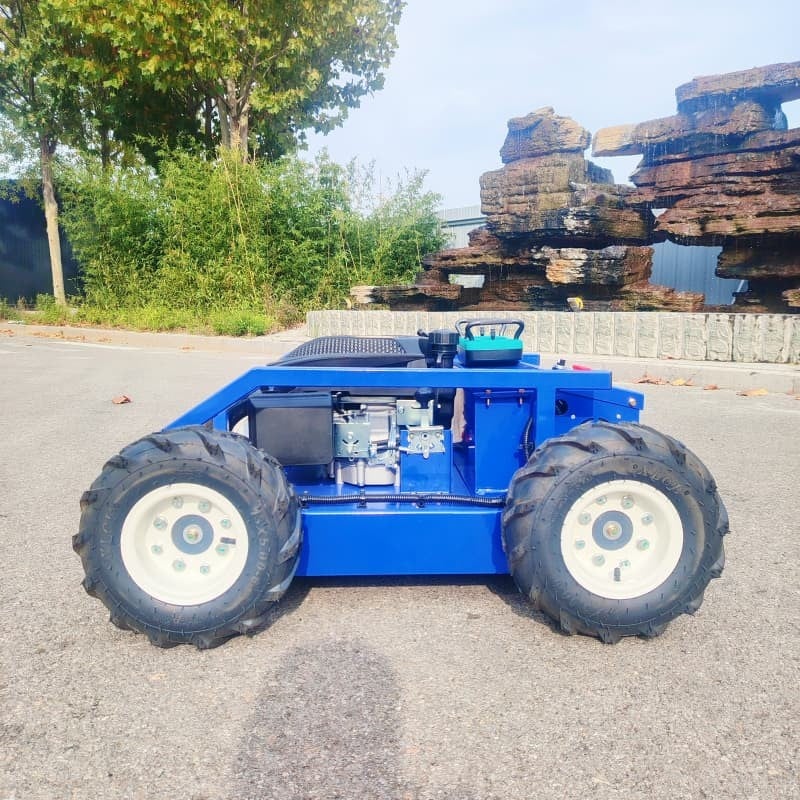

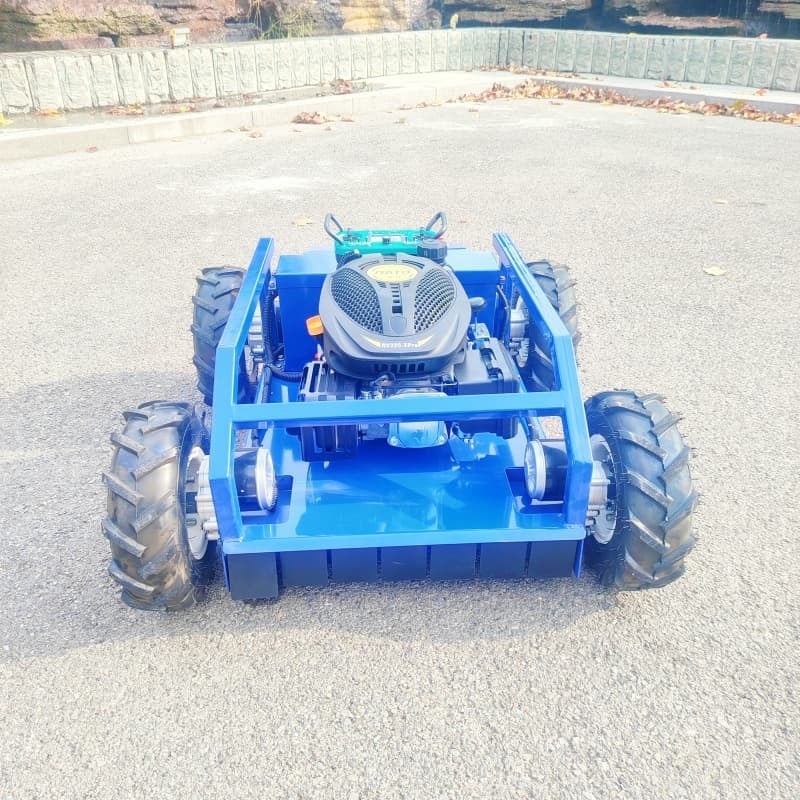

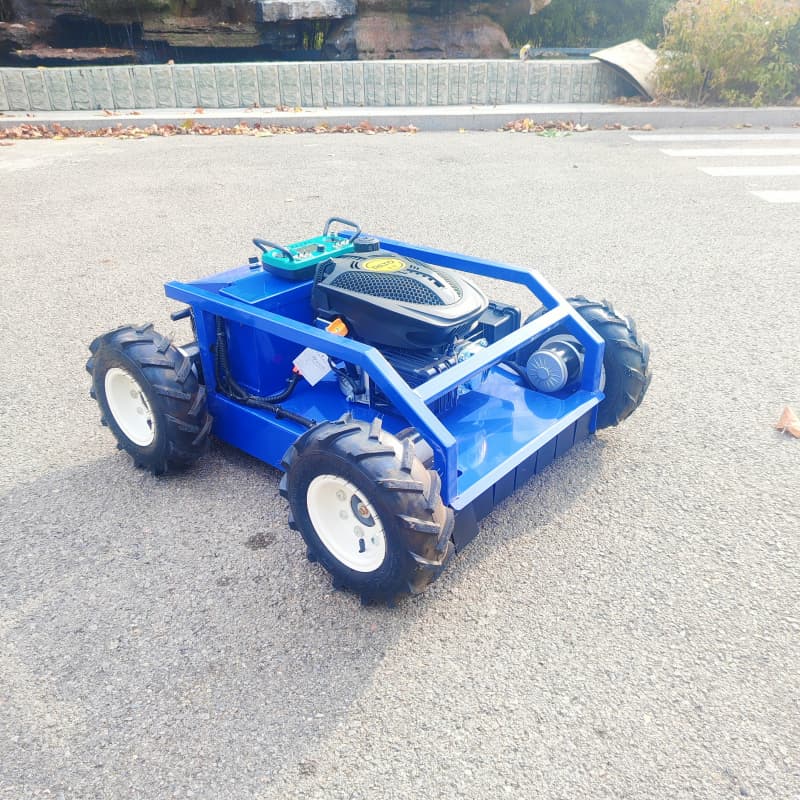

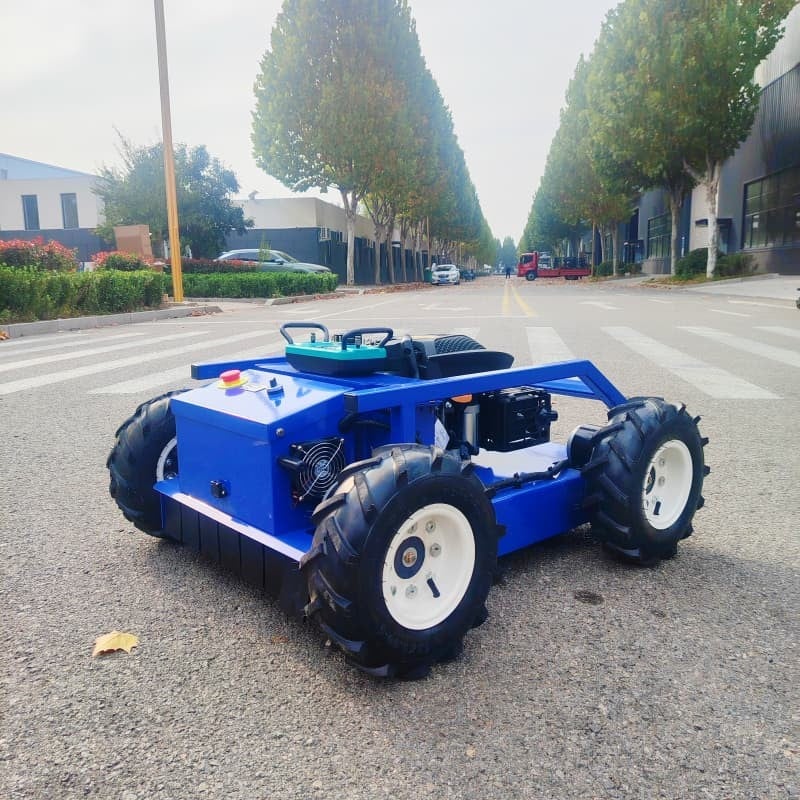

LM-KL500 Wheeled Remote Controlled Lawn Mower
Dimension: 1200*800*460mm
Overall weight: 115kg
Cutting width: 500mm
Cutting height: 70m
Remote control distance: 200m
Send Inquiry
Description
Technical Parameters

Product Highlights
All-terrain travel system
Intelligent remote control operation
High-performance powertrain
Modular durable structure

Dimensions and Structure





product-750-474    product-750-643



Products Parameter



Parameter Specification
Dimension 1200*800*460mm
Overall weight 115kg
Cutting width 500mm
Cutting height 70m
Remote control distance 200m
Walking speed 5km/h
Voltage and electrical capacity 24V24AH
Start mode Manual/remote control
Climbing angle 45°
Power generation method self generation
Power 9 hp
Mowing efficiency 2000m²/h






Product Details

product-800-800
01.

Anti-Slip Rubber Tires

Features
Rugged Tread Pattern: Features deep, wide, chevron-style (herringbone) transverse treads.
Factory-Fresh Finish: Retains the original rubber "nibs" (sprue marks) on the surface, indicating a brand-new tire.
Sturdy Construction: Mounted on a white steel rim and secured with multiple high-strength bolts.
Lateral Guidance: Raised sidewall edges prevent side-slipping on soft ground.

Advantages
Superior Traction: Excellent grip; prevents slipping on muddy, wet, or soft surfaces like lawns and orchard soil.
Self-Cleaning Capability: The chevron tread effectively sheds mud and weeds, preventing the tire from becoming clogged.
Durability & Puncture Resistance: Thick natural rubber compound offers superior wear resistance compared to standard lawn tires and resists punctures from tough weed stems or roots.

02.

Brushless DC Traction Motor

Features
External Direct Drive: Mounted directly to the wheel hub on the outside of the frame; eliminates traditional gearboxes or belt drives.
Fully Enclosed Metal Housing: Black and silver metal casing offers excellent dust and water resistance, suitable for harsh outdoor environments.
Compact Design: Small footprint; fits seamlessly against the wide wheel hub.
Advantages
Direct-drive structure minimizes power loss and maximizes transmission efficiency, providing powerful climbing capability (e.g., on 45° slopes).
Pairs with a remote control system to enable zero-radius turning, offering great maneuverability in orchards and complex terrain.
Operates much more quietly than traditional gasoline engine drive systems.

product-800-800
product-800-800
03.

Mechanical Throttle Adjuster

Features
Linkage & Lever Mechanism: Uses a combination of metal linkages, levers, and cables; features an exposed, intuitive design.
Manual Control Lever: Equipped with a black-handled lever for easy manual fine-tuning or emergency operation right at the machine.
Heavy-Duty Metal Construction: Adjustment brackets and mounts are made of thick metal, resistant to high temperatures, oil, and mechanical vibration.

Advantages
Mechanical cable control is more durable than electronic throttle systems, boasting an extremely low failure rate in the muddy, dusty environments typical of field operations.
Its purely mechanical design makes troubleshooting, lubrication, and replacement easy - even if the cable is damaged or sticks - resulting in low maintenance costs.
The exposed cable bracket design facilitates easy connection to the remote-controlled mower's electronic servo motor, enabling unmanned, remote throttle control.





Why Choose LM-KL500 Wheeled Remote Controlled Lawn Mower?



Non-slip rubber tires ensure stable operation even on 45-degree steep slopes or rugged terrain.
Free from vulnerable parts like belts or chains, resulting in a low failure rate and minimal daily maintenance requirements.
200-meter long-range remote control allows operators to stay clear of hazardous areas-such as steep slopes or high-altitude locations-ensuring personal safety.



Products Application



The LM-KL500 Wheeled Remote Controlled Lawn Mower is ideal for the following applications:
Orchards/Terraced Fields: Excellent climbing and traction; safe for tree roots.
Steep Slopes/Wild Terrain: Remote operation keeps the user away from danger.
Large Lawns/Greenbelts: Remote control ensures efficiency and safety.
Off-Grid Areas: Built-in power generation capabilities; can power tools like chainsaws and water pumps.
Villa Gardens: Saves time and effort; low noise operation.



Customizable colors



Supports customization in red, yellow, blue, green, black, etc.; personalized painting available based on specific scenarios or corporate needs; flexible minimum order quantities.
For special colors, a color code or physical reference sample is required.



product-750-333



Customer Reviews



Customer Reviews



FAQ



Q1.Could you provide samples?
A1:Yes,we support sample



Q2.Do you support customization?
A2:Yes,we support customization for packaging,logo,color,etc



Q3.What is your lead time?
A3.It about 15-20 days for bulk order.sample provided 1-2days after receive pament
