Products Structure
Products Specifications
| Parameter | Specifications |
| Overall Dimensions | 900 × 930 × 490 mm |
| Packaging Dimensions | 950 × 980 × 670 mm |
| Unit Weight | 140 kg |
| Packaging Weight | 175 kg |
| Cutting Width | 500 mm |
| Cutting Height | 20–150 mm (Adjustable) |
| Remote Control Range | 200 m |
| Travel Speed | 4 km/h |
| Voltage/Battery Capacity | 24V 24AH |
| Startup Method | Manual / Remote Control Start |
| Climbing Angle | 45° |
| Power Generation Method | Self-Generating |
| Engine Power | 9 HP |
| Mowing Efficiency | 1500 m²/h |
| Control System | Integrated Circuit Control System |
| Remote Control Language | Bilingual (Chinese / English) |
Practical Application Demonstration
Product Details

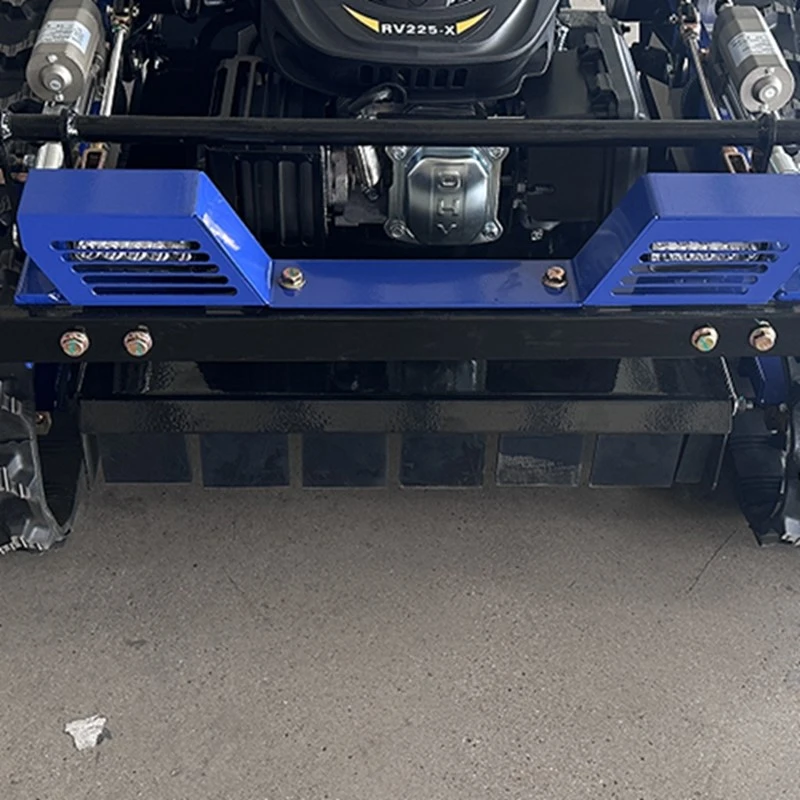

Blade System
The mower blades of Tracked Slope Mower are crafted from a specialized boron-manganese-chromium alloy steel. With a thickness of 4mm, these blades possess exceptional hardness and toughness, along with excellent wear resistance, allowing them to effortlessly cut through a wide variety of weeds and brush
Electrical System
The circuitry is clearly laid out and easy to understand, facilitating convenient maintenance; it features a high degree of integration.
Lifting System
The lifting cylinders are constructed from stainless steel.
They generate a thrust force of up to 2000N, providing ample power for lifting tasks.
Rated IP65 for water resistance, allowing for reliable operation in rainy weather or humid environments.
Remote Control Functions
It utilizes an industrial-grade remote control equipped with a 2.4GHz chip and 9 channels, ensuring stable signal transmission and strong anti-interference capabilities. The controller supports a host of convenient features-including a backlit display, adjustable throttle response, key locking, range control, fine-tuning adjustments, and cruise control-making operation both intuitive and effortles
Product Advantages
- Safe and Efficient: There is no need for an operator to follow the machine on foot; you can simply stand at a safe distance and operate it remotely. This eliminates the risk of injury from the rotating blades and avoids the physical strain of navigating steep slopes or muddy terrain, ensuring a highly safe working environment. Powered by a robust 9-horsepower engine, it can mow up to 1,500 square meters per hour-delivering rapid results without requiring significant physical effort.
- Superior Terrain Adaptability: The tracked drive system ensures stable movement, allowing the machine to climb slopes of up to 45 degrees. It can easily traverse wet ground and uneven, pitted terrain-a level of capability that wheeled mowers simply cannot match. Convenient Operation: The remote control is industrial-grade, feature-rich, and allows for precise speed control and directional fine-tuning, making operation both accurate and effortless.
- Durable and Reliable: The blades of Tracked Slope Mower are crafted from special-grade steel, offering exceptional wear resistance and impact durability. The electrical circuitry features excellent waterproofing, and the machine chassis is robustly constructed, ensuring long-term reliability with minimal risk of breakdown.
- Simple Maintenance: Routine maintenance is hassle-free; simply clean the unit after use, check the engine oil level, air filter, and battery, and inspect the blades and control box screws.
Product Applications
- Orchards & Farms: Ideal for large areas with dense vegetation; using this machine for mowing significantly reduces labor requirements and saves time.
- Golf Courses: Offers precise control over mowing height, ensuring the turf remains impeccably neat and aesthetically pleasing.
- Parks & Green Spaces: Easily handles uneven or rugged terrain, delivering superior operational efficiency even in challenging environments.
- Slopes & Hillsides: Capable of climbing slopes up to 45 degrees, allowing it to access and mow areas that are inaccessible to standard lawnmowers.
Packaging
Wooden Crate Packaging
Ensures maximum protection during transit.
FAQ
Q: Do you accept OEM/Customized Production?
A: Yes. Customizations-such as specific colors, logos, decals, or packaging-require an additional 5–10 business days and are subject to a Minimum Order Quantity (typically 50 units or more).
Q: Are protective measures, such as reinforcement and moisture-proofing, provided during shipping?
A: Yes. Our standard export packaging includes moisture-proof wrapping, foam cushioning, and wooden pallet reinforcement, making it suitable for long-distance sea freight.
Q: What payment methods do you accept?
A: We accept the following three methods:
T/T (Bank Wire Transfer)
L/C (Letter of Credit-accepted only from reputable banks)
Western Union / MoneyGram (for small-value sample orders)
Q: Do you provide accompanying shipping documents?
A: Yes. We can provide:
Commercial Invoice
Packing List
Bill of Lading (B/L)
Certificate of Origin (upon request)
Product Manual (Chinese/English)
Test Reports (upon request by specific clients)
Q: Do you provide after-sales service and technical support?
A: Yes. We offer remote technical assistance, video-guided troubleshooting, and the supply of consumable/wear-and-tear parts.
