Orca Intelligent Equipment Co., Ltd. is one of the leading manufacturers and suppliers of 90 hp skid steer in China. With abundant experience, we are committed to providing high quality customized service for global clients. Please feel free to buy discount 90 hp skid steer from our factory.
Product Overview

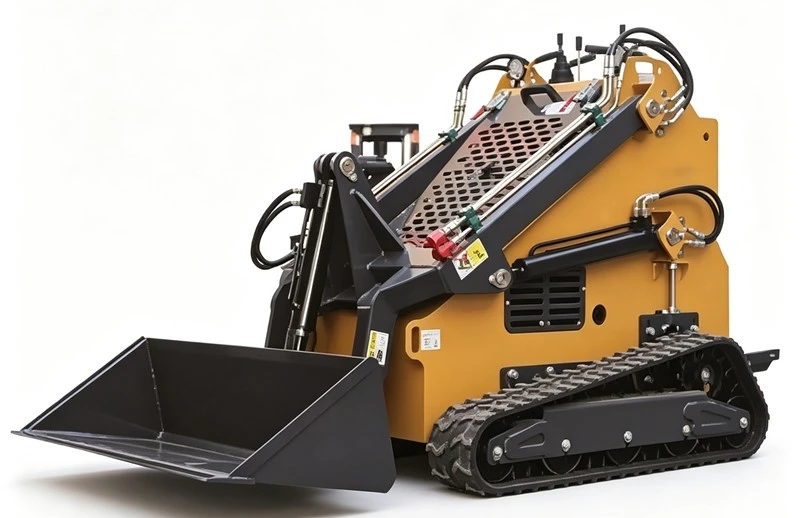

A 90 hp skid steer is a good fit for contractors who need power in a compact machine. It can move materials, prepare ground, handle landscaping jobs, and support general construction work. With the right attachments, one machine can cover several tasks, reducing the need for additional equipment. Before buying, it's worth checking the hydraulic system, rated operating capacity, machine size, and attachment compatibility to make sure it fits your daily work.
Technical Specifications
| Parameter | Value |
| ENGINE | |
| Engine Brand | Briggs & Stratton 25T2 |
| Rated Power & Speed | 13.5HP/3600rpm |
| Fuel Tank Capacity | 28L |
| Hydraulic Oil Tank Capacity | 20L |
| Optional Engine Configurations (Stage II / EPA / Euro V) | Briggs & Stratton 25T2 / Hox:390 / Honda GX390 / Runtong 420cc / Kopu 192 / Changchai 192 |
| PERFORMANCE PARAMETERS | |
| Max. Load Capacity | 380KG |
| Bucket Capacity | 150L |
| Max. Digging Force | 450Kg |
| Travel Speed | 0-5.5Km/h |
| Machine Net Weight | Wheel Type: 710kg / Track Type: 780kg |
| Traction Force | 520KG |
| Gradeability Angle | 30° |
| PRODUCT PARAMETERS | |
| Max. Operating Height | 2200mm |
| Max. Pin Height | 1900mm |
| Max. Dump Height | 1560/1800mm |
| Max. Dump Reach | 348mm |
| Dump Angle | 55° |
| Rollback Angle | 30° |
| Bucket Rollback Angle (Ground Position) | 25° |
| Departure Angle | 11° |
| Overall Height | 1350mm |
| Ground Clearance | 100mm |
| Wheelbase | 860mm |
| Overall Length (Without Bucket) | 1780mm |
| Overall Width | 1200mm |
| Bucket Width | 1190mm |
| Overall Length (With Bucket) | 2500mm |
| Turning Radius | 1307mm |
| TIRE / TRACK MODEL | |
| Herringbone Industrial Tire | 18*8.5-8 |
| Track Model | 180/60/46 |
| EXPORT PACKING | |
| Fumigation-Free Wooden Case Packing | 2070*1250*1460mm |
| Stackable Steel Frame Packing | 2190*1200*2540mm |
Product Features
90 HP Engine
Delivers the power needed for everyday construction and material handling, depending on the engine and hydraulic setup.
01
Compact Design
Makes the 90 hp skid steer easier to maneuver in tight spaces where larger loaders may struggle.
02
Flexible Attachment Options
Works with compatible buckets, pallet forks, augers, and other tools for different jobs.
03
Easy Handling
Responsive controls help operators steer, load, and position the machine during daily work.
04
Convenient Maintenance
Accessible service points make routine checks and maintenance easier, depending on the model.
05
How to Operate the Machine
Pre-Operation Inspection: Check the tires or tracks, hydraulic lines, attachment connections, fluid levels, and safety devices before starting the machine.
Attachment Check: Make sure the attachment is securely locked and suitable for the task.
Start-Up and Controls: Start the machine according to the operator's manual and test the controls in a clear, safe area.
Safe Operation: Keep loads within the rated capacity, carry loads low while moving, and avoid sharp turns on uneven ground.
Maintenance and Attachment Changes: Shut down the machine before maintenance or changing attachments whenever required by the operating instructions.
Operator Training: Ensure operators understand the machine's controls and follow the manufacturer's safety guidelines.
Services and Support
Model Selection: Assistance with comparing operating capacity, dimensions and hydraulic requirements.
Attachment Matching: Guidance on selecting compatible buckets, forks and other work tools.
Technical Documentation: Available specifications, operation manuals and maintenance information, subject to model and configuration.
Parts Support: Replacement parts can be identified according to the machine model and component details.
After-Sales Assistance: Support arrangements can be discussed before ordering.
FAQ
Q: How do I choose the right skid steer for my business?
A: Consider your daily workload, lifting requirements, working space, and the types of materials you handle.
Q: Which attachments should I order with the machine?
A: Buckets suit general material handling, while pallet forks and augers are useful for lifting goods and drilling holes. Choose based on your main jobs.
Q: What specifications should I compare before purchasing?
A: Check rated operating capacity, tipping load, hydraulic flow, machine dimensions, and operating weight to see whether the machine fits your needs.
Q: Can a 90 hp skid steer work on different job sites?
A: Yes. With suitable attachments, it can handle construction, landscaping, farm work, and material transport, provided the site conditions match the machine's capabilities.
Q: What affects the machine's long-term operating costs?
A: Fuel use, maintenance needs, replacement parts, and attachment wear all matter. Regular servicing and choosing the right machine for the workload can help control costs.
