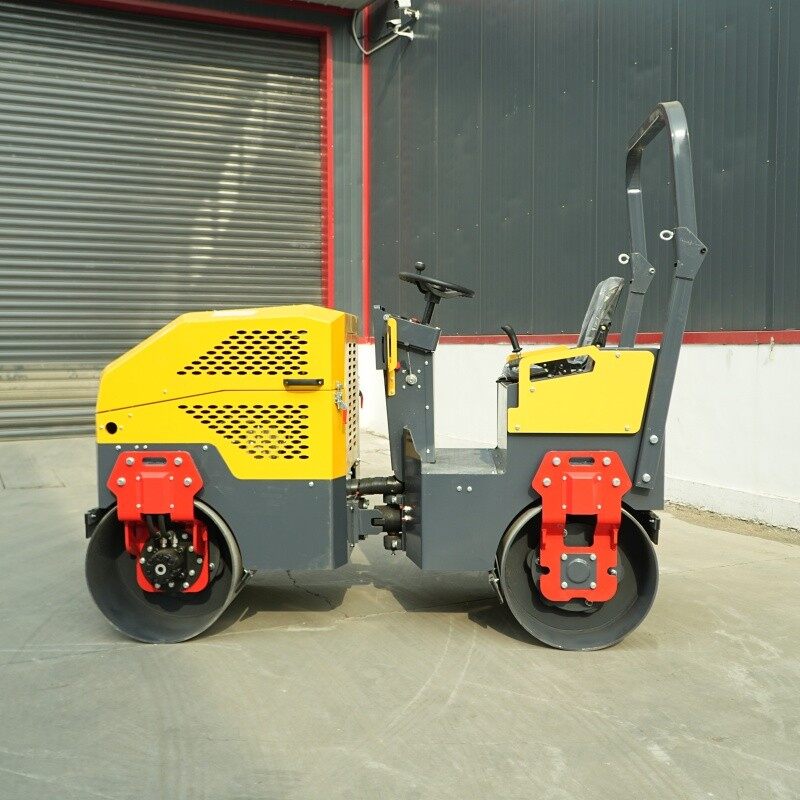

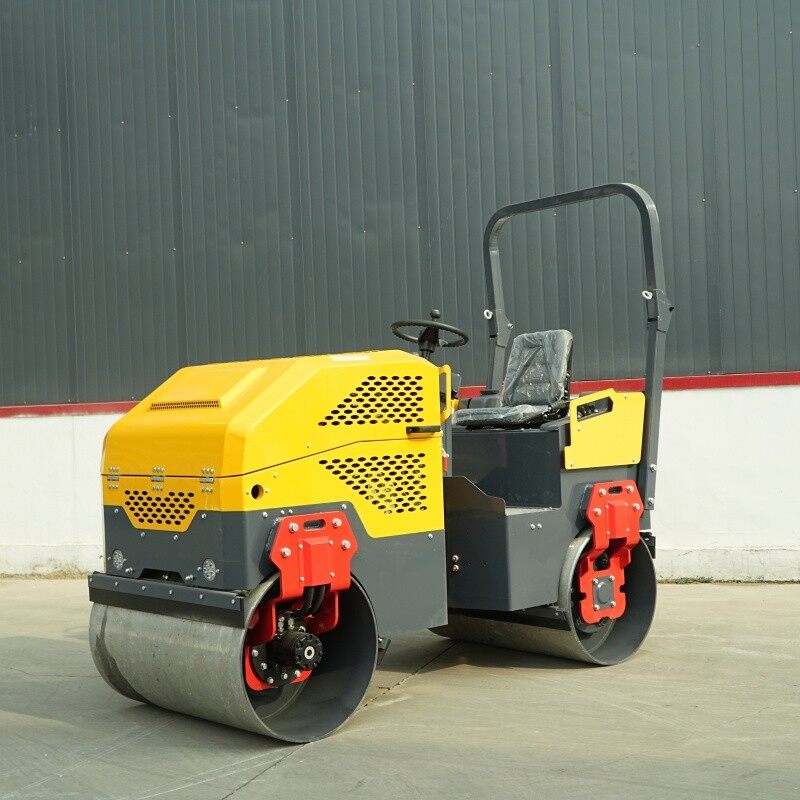

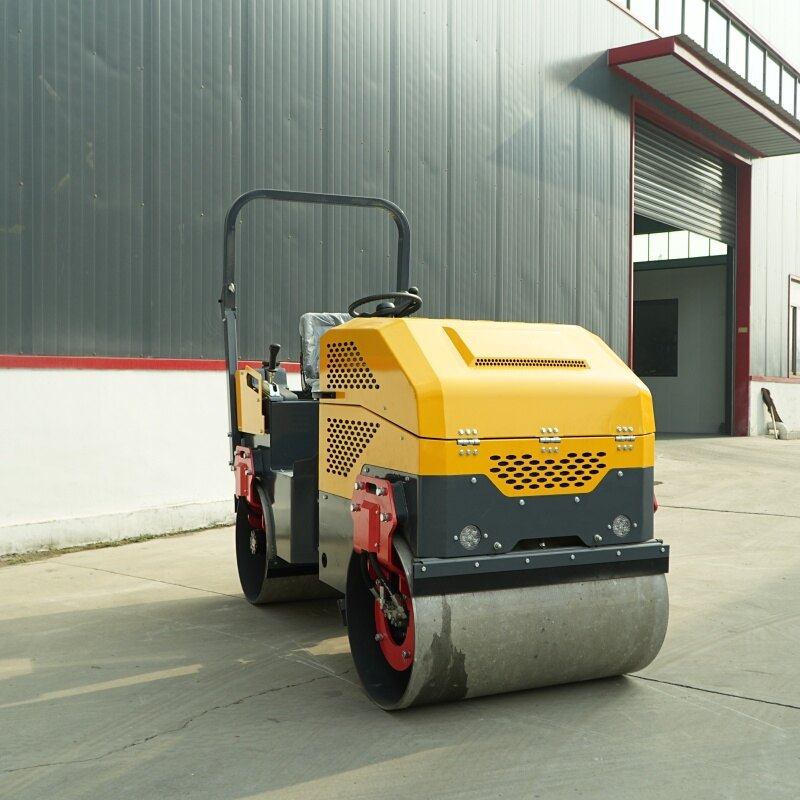

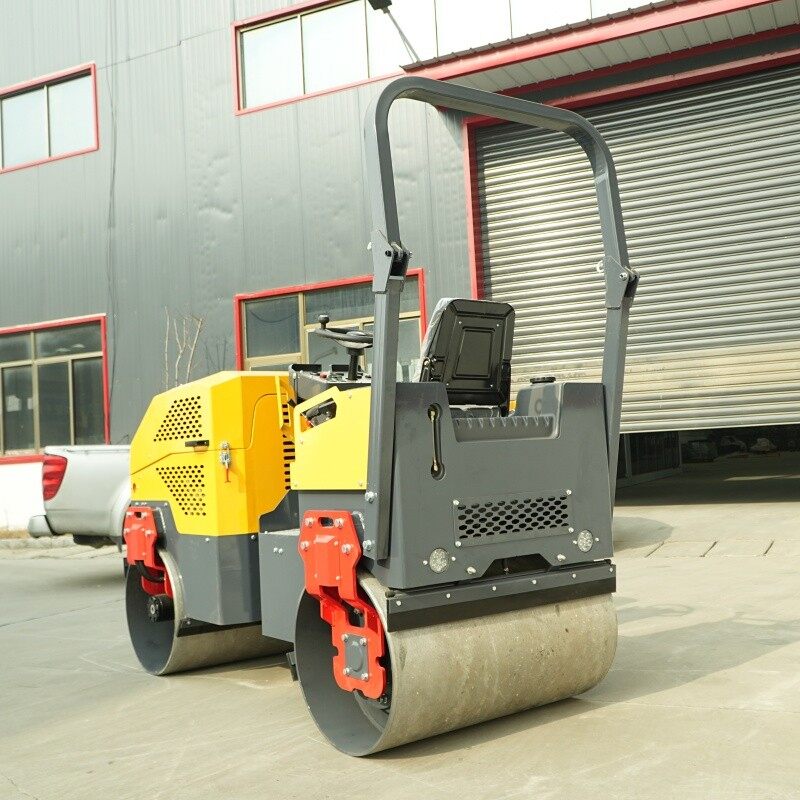

The DR 2000H is a 2-ton class fully hydraulic double drum road roller designed for demanding compaction tasks on small to medium job sites. Combining a robust hydraulic system, advanced bearing technology, and operator-focused features, this roller delivers consistent performance, reliability, and ease of operation.
Model Overview
- Model: DR 2000H
- Weight Class: 2 tons
- Drive Type: Fully hydraulic double drum drive
- Purpose: Road construction, landscaping, building sites, and trench backfilling
This naming convention reflects both the weight class and the fully hydraulic system, highlighting the machine's premium functionality.
Full Hydraulic Drive System – Smooth & Powerful
The DR 2000H features:
- Hydraulic double drum drive for stable traction
- Stepless speed control (0–12 km/h) for precise compaction
- Hydraulic power-assisted steering for effortless maneuvering
- Strong climbing ability on slopes up to 30%
This design ensures superior control on uneven surfaces and minimizes operator effort, making it ideal for tight construction areas.
Reliable & Durable Hydraulic Components
Equipped with brand-name swashplate motors and variable displacement pumps, the hydraulic system is engineered for:
- Consistent performance under continuous operation
- High efficiency with reduced energy consumption
- Longevity in harsh job site environments
Operators can rely on the DR 2000H for long-term stable operation with minimal downtime.
Precision Bearings for Extended Life
The roller uses high-precision NSK angular contact ball bearings with housing, providing:
- Smooth drum rotation
- Extended service life of key components
- Reduced maintenance frequency
This ensures reliable operation during heavy and prolonged use.
Heavy-Duty Drums & Water System
Drum Dimensions: Front / Rear diameter: 610 mm; Width: 1000 mm
Hydraulic vibration system: Exciting force of 35 kN, vibration frequency: 70 Hz
Large-capacity rotomolded water tank (108 L) resists rust
Electric pressure water spray ensures even distribution for optimal asphalt compaction
The seamless combination of drum weight, vibration, and water system provides smooth, uniform compaction results.
Safety Features
Manual parking brake for secure parking on slopes
Stable hydraulic steering reduces tipping risk
Compact dimensions allow safe operation in confined spaces
Technical Specifications
| Category | Item | Specification |
|---|---|---|
| Model | Model | YH-JS1000 |
| Travel | Speed | 0–12 km/h |
| Turning Radius | 2300 mm | |
| Gradeability | 30% | |
| Compaction | Static Load (Front/Rear) | 100 / 83 N/cm |
| Nominal Amplitude | 0.5 mm | |
| Vibration Frequency | 70 Hz | |
| Exciting Force | 35 kN | |
| Working System | Drive Type | Hydraulic Double Drum Drive |
| Vibration Type | Hydraulic Front Drum Vibration | |
| Steering Type | Hydraulic Power-Assisted | |
| Water Spraying | Electric Pressure Water Spray | |
| Water Tank | Rotomolded 108 L | |
| Hydraulic Oil Tank | 26 L | |
| Parking Brake | Manual | |
| Engine | Model | Changchai 390 |
| Type | Diesel, Vertical 3-Cylinder Water-Cooled | |
| Rated Power | 39 HP / 2600 rpm | |
| Fuel Tank Capacity | 26 L | |
| Optional Engines | Changchai 390 / Honda GX690 / Briggs & Stratton 3864 / Kubota D1105 | |
| Dimensions | Drum Width (Front/Rear) | 1000 mm |
| Drum Diameter (Front/Rear) | 610 mm | |
| Overall Length | 2350 mm | |
| Overall Width | 1120 mm | |
| Overall Height (Without Guard) | 1600 mm | |
| Packaging (Wooden Case) | 2390 × 1220 × 1690 mm | |
| Weight | Net Weight | 1580 kg |
| Operating Weight | 1750 kg |
Applications
Asphalt and road construction
Building and civil engineering projects
Lawn and landscape compaction
Trench and backfill compaction
Why Choose DR 2000H
Fully hydraulic system for smooth, precise control
Powerful vibration force (35 kN) for efficient compaction
Premium NSK bearings for extended durability
Heavy-duty drums and rust-resistant water system
Safe and operator-friendly with hydraulic-assisted steering and handbrake
Summary
The DR 2000H combines 2-ton compaction power, fully hydraulic performance, and premium components to deliver reliable, efficient, and safe operation on any small to medium construction site.
For contractors seeking precision, durability, and operational comfort, this roller is a dependable choice.
