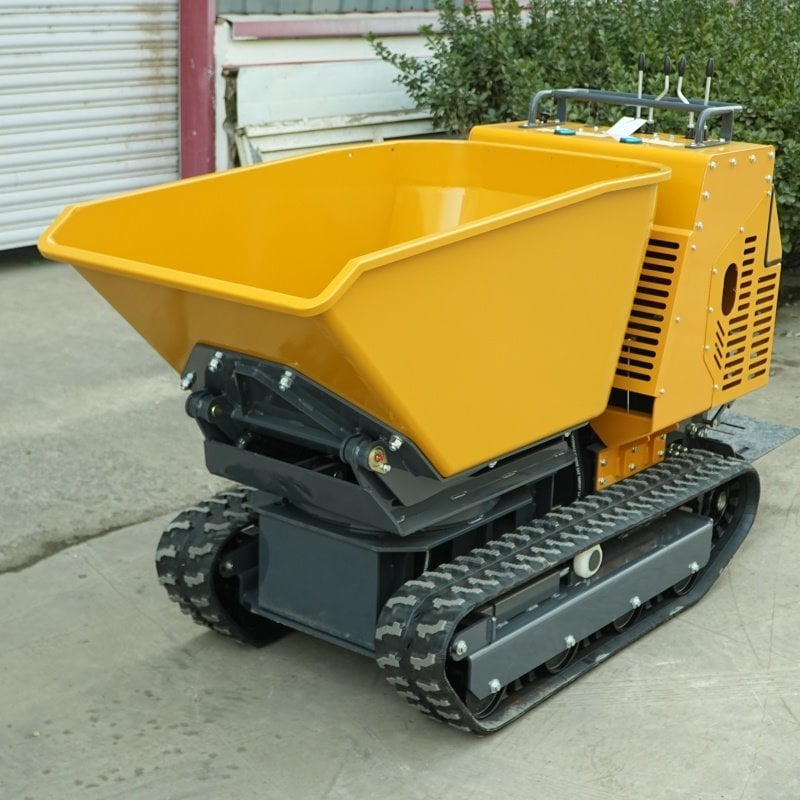

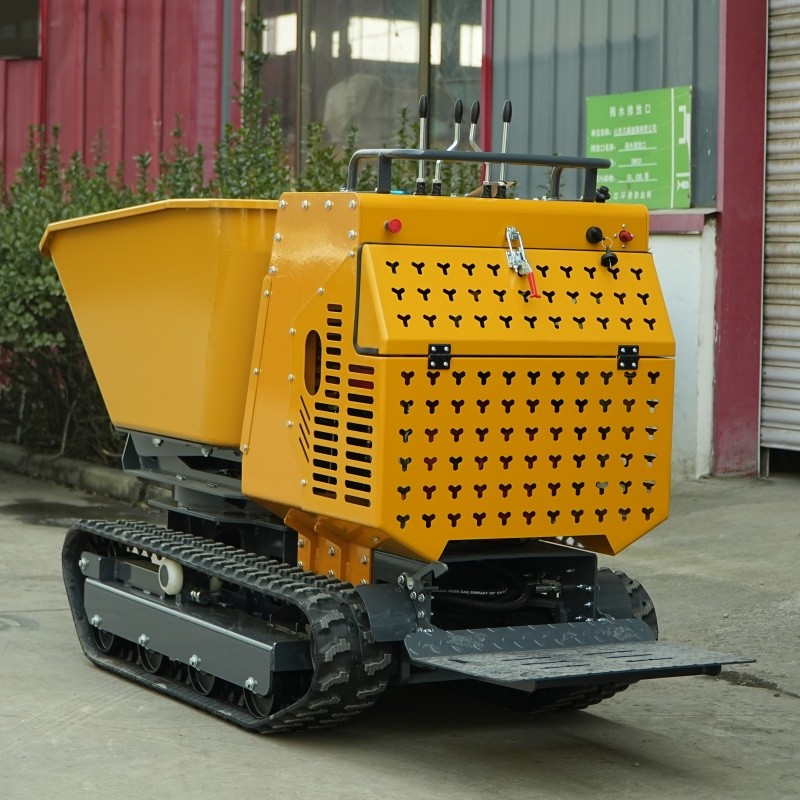

The Micro Tracked Dumper is a compact and rugged material handling solution designed for construction, landscaping, agriculture, and municipal applications. With a 1200 kg payload capacity, hydraulic dumping system, and high-traction rubber tracks, this machine delivers robust performance even in confined and demanding work sites.
Products Specifications
| Item | Specification |
|---|---|
| Engine | Briggs & Stratton |
| Power | 13.5 HP |
| Emission | EPA & Euro 5 |
| Displacement | 420 cc |
| Fuel Tank | 6.5 L |
| Max Load Capacity | 1200 kg |
| Net Weight | 850 kg |
| Cargo Box Capacity | 594 dm³ |
| Overall Size | 2470 × 900 × 1400 mm |
| Chassis Width | 900 mm |
| Track Width | 180 mm |
| Walking Speed | 5 km/h |
| Climbing Ability | 25° |
| Tipping Angle | 90° |
| Maximum Rotation Angle | 260° |
| Hydraulic System | Independent hydraulic circuit |
Products Features
EPA and Euro 5 Compliant Engine
This micro tracked dumper is equipped with a Briggs & Stratton 13.5 hp gasoline engine, fully compliant with EPA and Euro 5 emission standards.
This ensures:
- Legal operation in the US and Europe
- Ensuring environmental compliance in regulated work sites
- Easier import procedures
- More readily accepted by rental companies and contractors
For customers with specific requirements, we also offer a Euro 5 compliant KOOP engine option.
Heavy-Duty Chassis
Unlike the light-duty compact dumper, this model features a reinforced, thick-walled steel chassis (900 mm wide) designed for continuous commercial operation.
With a 1200 kg load capacity and optimized structural balance, this machine achieves:
- Stable transport under full load
- Reduced vibration stress
- Longer service life
High-strength hydraulic cylinders

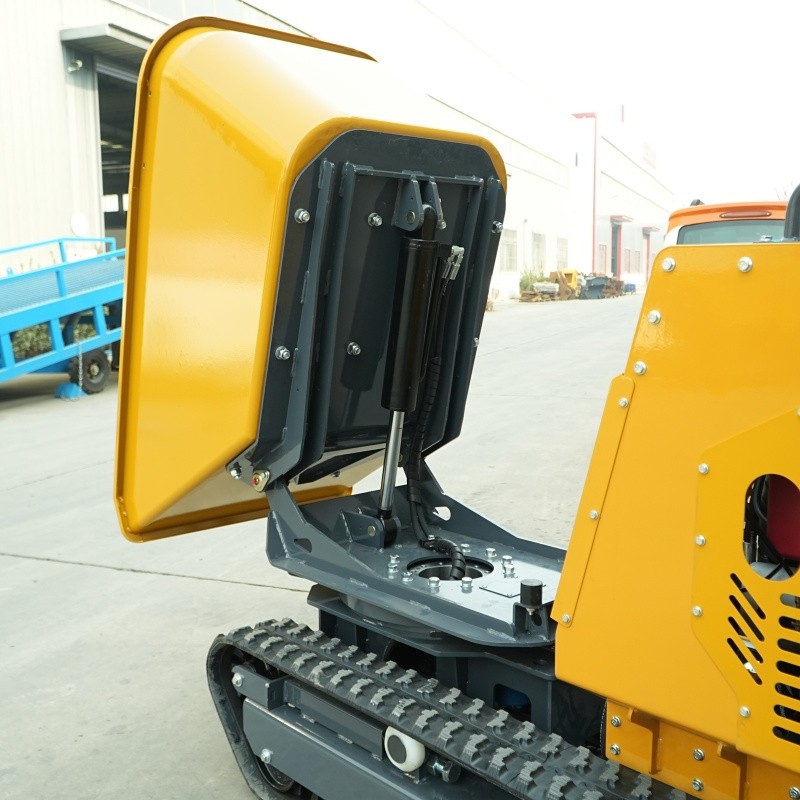

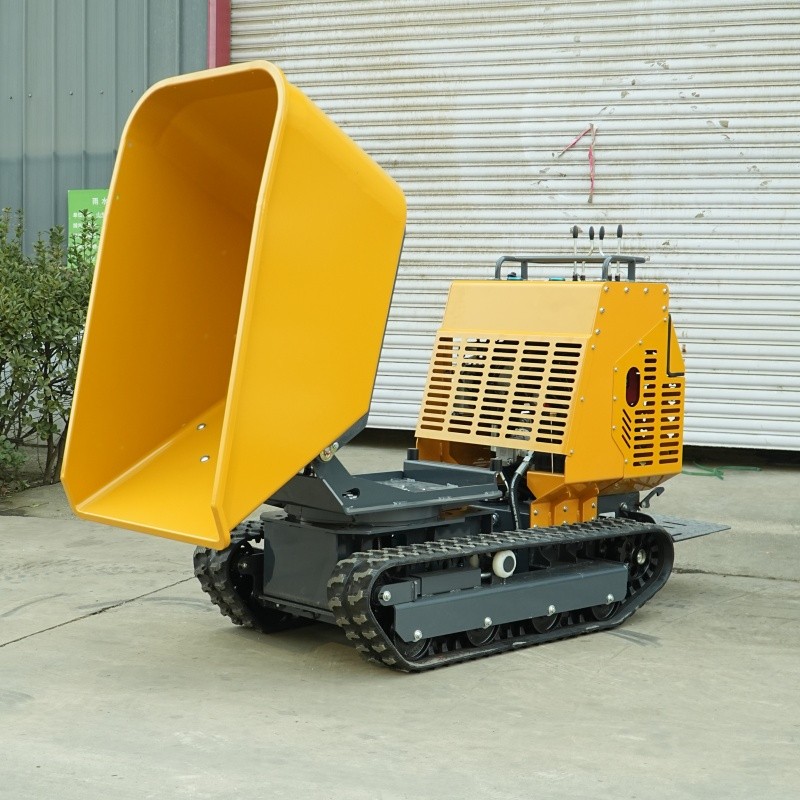

This dump truck is equipped with a high-strength hydraulic cylinder-driven tipping system and hydraulic rotation mechanism.
Key advantages include:
- Smooth tipping even under maximum load
- 90° tilt angle
- 260° rotation capability
- Stable and responsive hydraulic control
Independent hydraulic circuits improve operational reliability and reduce maintenance complexity.
Superior traction for challenging terrain
This dump truck is equipped with 7-inch engineered rubber tracks, providing excellent traction on:
- Muddy construction sites
- Wet landscaped areas
- Gravel roads
- Uneven terrain
Up to 25° climbing ability ensures efficient operation on slopes and ramps common in residential and commercial projects.
Centralized joystick control system
This Micro Tracked Dumper features a centralized joystick control system with the following characteristics:
- Easy to learn
- Smooth operation
- Suitable for rental fleets
- Efficiently meets the daily needs of contractors
With electric start and an intuitive control system, operators can quickly learn to operate the machine with minimal training.
After-sales support
We provide professional support services for overseas customers, including:
- English operation manual
- Online technical support
- Spare parts supply support
- Long-term cooperation services
Our goal is to ensure that customers minimize downtime and achieve reliable performance throughout the product's entire lifecycle.
FAQ
Q: How easy is maintenance and spare parts replacement?
A: The machine is designed for straightforward maintenance.
Since it uses a globally recognized Briggs & Stratton engine, engine spare parts are widely available in North America and Europe.
For chassis and hydraulic components, we provide spare parts supply and technical support to ensure minimal downtime.
Q: What is the typical shipping method?
A: The dumper is suitable for:
Full container load (FCL)
Less than container load (LCL)
Its compact dimensions simplify international transportation and container loading.
