Products Specification

Parameter	Specification
Net Weight	850 kg
Max. Load Capacity	1200 kg
Bucket Capacity	594 dm³ (594 Liters)
Overall Dimensions (L×W×H)	2470 × 900 × 1400 mm
Inner Bucket Dimensions (L×W×H)	1300 × 800 × 600 mm
Chassis Width	850 mm
Track Width	180 mm
Track Ground Contact Length	1000 mm
Track Center Distance	670 mm
Ground Clearance	110 mm
Max. Gradeability	20°
Travel Speed	5 km/h
Min. Turning Radius	1300 mm
Engine & Power
Engine Model	Briggs & Stratton 420CC
Engine Type	Single cylinder, OHV, 4-stroke, Air-cooled Gasoline
Rated Power	13.5 HP / 3600 rpm
Fuel Type	92# Gasoline
Fuel Tank Capacity	6.5 L
Dumping & Operation
Dumping Method	Hydraulic Self-unloading
Dumping Angle	90°
Max. Rotation Angle	180° (Hydraulic Rotation)
Tipping Pivot Distance	320 mm

Products Features and Advantages

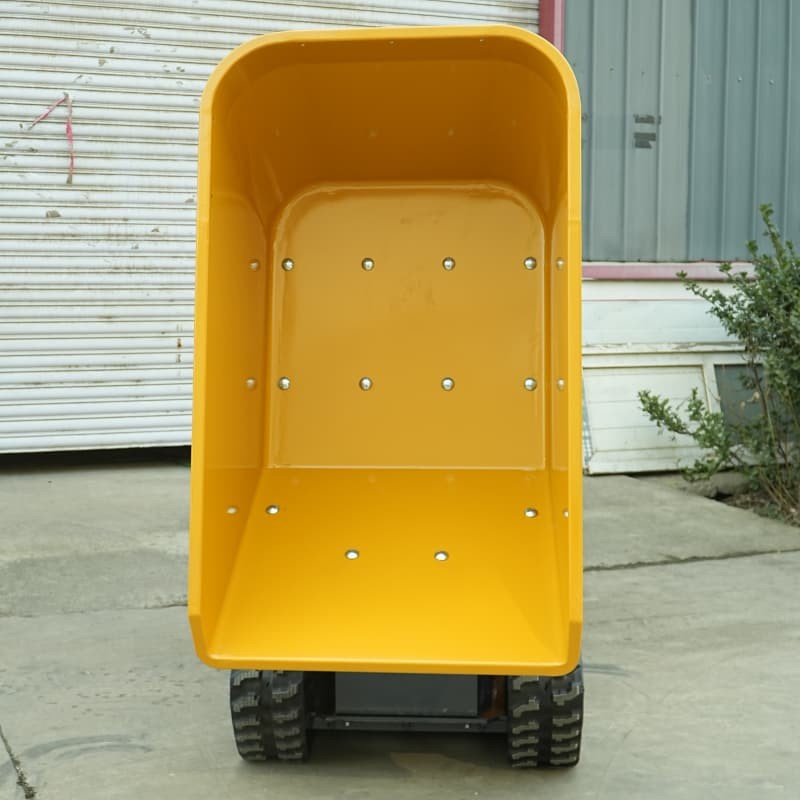

Premium Materials

The frame and skip are constructed from high-quality, low-alloy, high-strength manganese steel (Q345B) using an integrated stamping and welding process. This steel offers high yield strength, providing excellent impact and wear resistance. The skip features a 4 mm wall thickness, effectively withstanding deformation and wear from large rocks and heavy loads of sand, gravel, bricks, and construction debris; its service life far exceeds that of standard models made from A3 carbon steel.

Heavy-Duty Undercarriage

The undercarriage utilizes a heavy-duty welded steel frame rather than simple bent steel plates. Internal reinforcement ribs ensure the chassis longitudinal beams resist twisting and deformation even under a full 1,200 kg load. A ground clearance of 110 mm, combined with a robust, sealed underbody guard, effectively prevents mud and grit from entering the bearings and protects critical moving parts.

Tracks and Load-Bearing Wheels (Tear-Resistant Rubber)

The drive system employs professional-grade, cut-resistant rubber tracks with a width of 180 mm. Reinforced with embedded high-strength steel wire strands, these tracks offer superior tensile strength and tear resistance compared to standard rubber tracks, ensuring durability and preventing chunking when traveling over gravel surfaces. The all-steel bottom track rollers (flanged design) mesh tightly with the tracks, ensuring smooth travel. All track rollers and drive sprockets are equipped with double-lip seals and composite bearings, enabling long-term operation in muddy or wet environments without the risk of sand ingress or seizure.

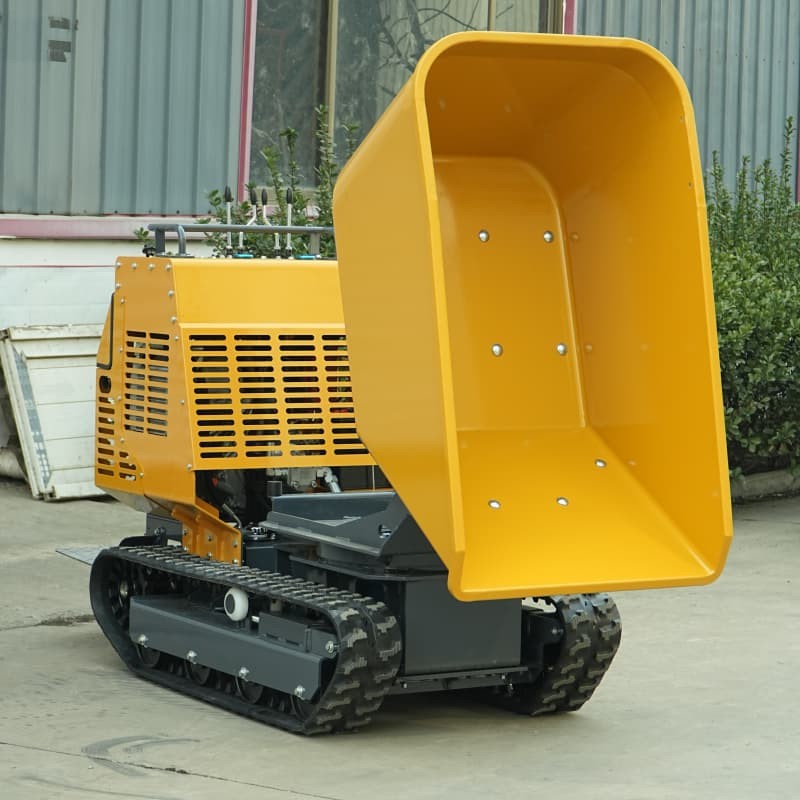

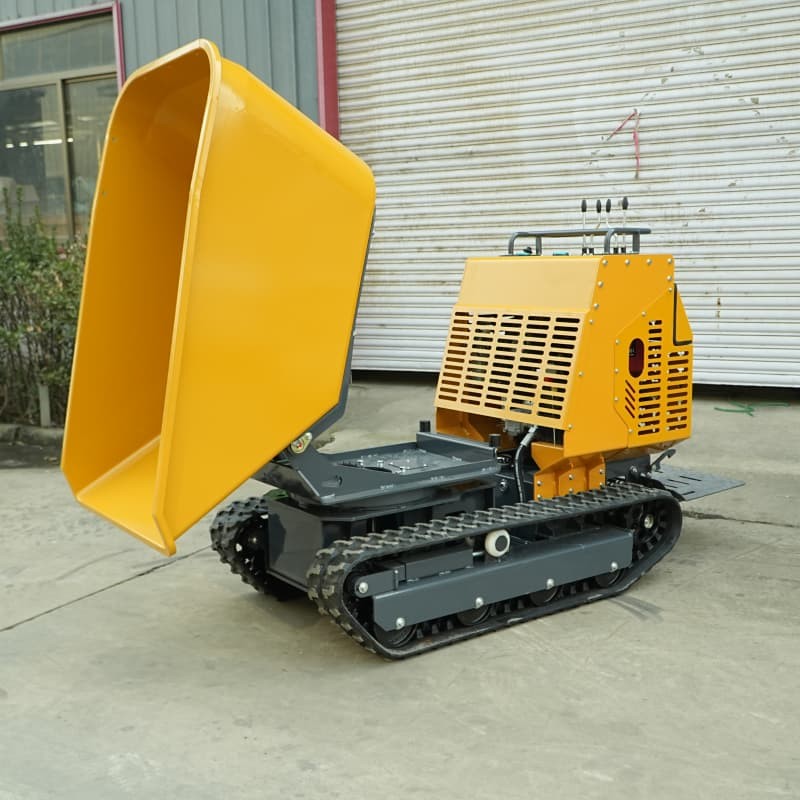

Hydraulic Slewing Mechanism

The hopper's 180° rotation system is driven by an independent hydraulic slewing motor. Key internal seals utilize imported high-pressure resistant oil seals (NBR material), ensuring smooth, leak-free rotation even under heavy loads and preventing issues such as "soft legs" (instability) or the inability to rotate due to unbalanced loads.

Products Applications

Landscaping: Transporting soil, turf, and landscaping stones; rubber tracks protect lawns and handle slopes with ease.

Agriculture & Orchards: Maneuvering through narrow rows of fruit trees to transport produce, fertilizer, and feed; capable of navigating muddy ground after rain.

Narrow Worksites/Indoor Use: Easily passes through standard doorways to efficiently transport sand, gravel, cement, or construction debris.

Municipal & Maintenance: Used for trench backfilling, slope maintenance, and material transport on snow-covered roads in winter.
