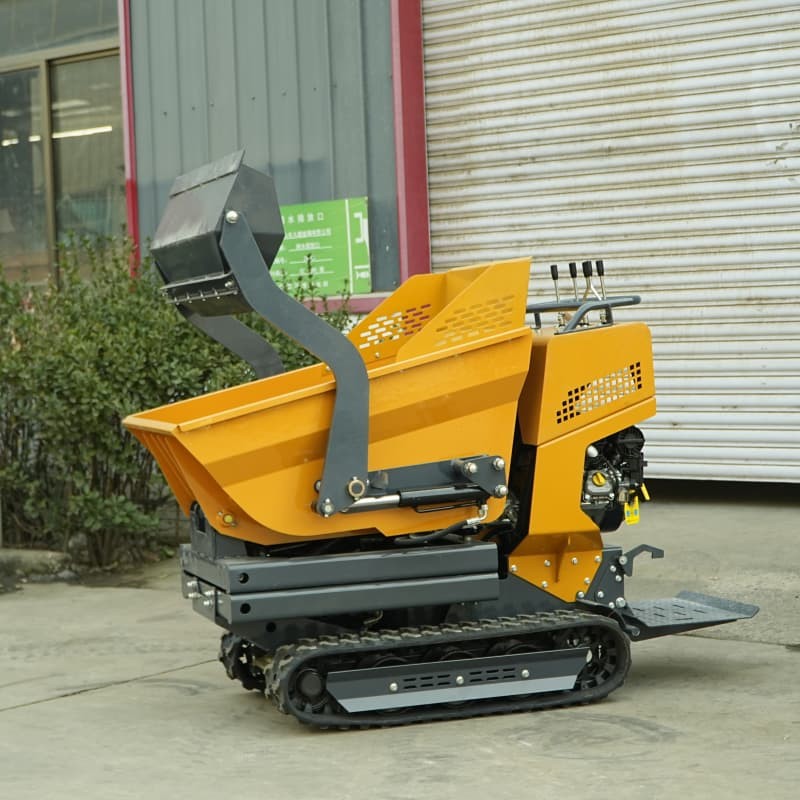

We built the DM1000L to solve a single problem: regular dump trucks dump too low, meaning you still have to shovel material by hand.
This one is different. Drive up, pull the lever, and the bucket rises to 1.5 meters and tips back, depositing material straight into a mixer or truck-no shoveling required.
At only 900mm wide, it fits through a standard door. Its tracks grip the ground, so it won't sink in mud and can climb slopes up to 20°. Engine options are all mainstream-Briggs & Stratton, Kopp, Honda, or Runtong-making parts easy to find anywhere.
Weighing 880kg and carrying up to 1000kg, it outperforms many machines of this size. Anyone who's worked on a construction site knows that one less trip saves time.
Product Parameters
| Parameter | Value |
| Basic Information | |
| Model | DM1000L |
| Net Weight | 880 kg |
| Maximum Load Capacity | 1000 kg |
| Cargo Box Capacity | 450 dm³ |
| Dimensions | |
| Chassis Width | 850 mm |
| Overall Dimensions (L×W×H) | 2500 × 900 × 1560 mm |
| Cargo Box Dimensions (L×W×H) | 1250 × 780 × 500 mm |
| Track & Chassis | |
| Track Width | 180 mm |
| Track Ground Contact Length | 1000 mm |
| Chassis Ground Clearance | 110 mm |
| Track Center Distance | 670 mm |
| Performance | |
| Dumping System | Hydraulic self-dumping |
| Dumping Angle | 90° |
| Maximum Lift Height | 1500 mm |
| Unloading Height (from ground) | 1300 mm |
| Dumping Interval / Tip Clearance | 300 mm |
| Traveling Speed | 5 km/h |
| Minimum Turning Radius | 1300 mm |
| Climbing Ability | 20° |
| Engine (Standard) | |
| Engine Model | Briggs & Stratton |
| Engine Type | Single cylinder, OHV, 4-stroke, air cooling |
| Displacement | 420 cc |
| Rated Power | 13.5 HP / 3600 rpm |
| Fuel Type | 92# Gasoline |
| Fuel Tank Capacity | 6.5 L |
| Optional Engines | |
| Available Options | Briggs & Stratton 25T2 / Kopp 192 / Honda GX390 / Runtong 420cc (Contact us for other brands) |
| Packaging Options | |
| Option 1 – Wooden Box (Fumigation-free) | 2100 × 1030 × 1580 mm |
| Option 2 – Steel Frame Stackable | 2050 × 960 × 2500 mm |
Product details

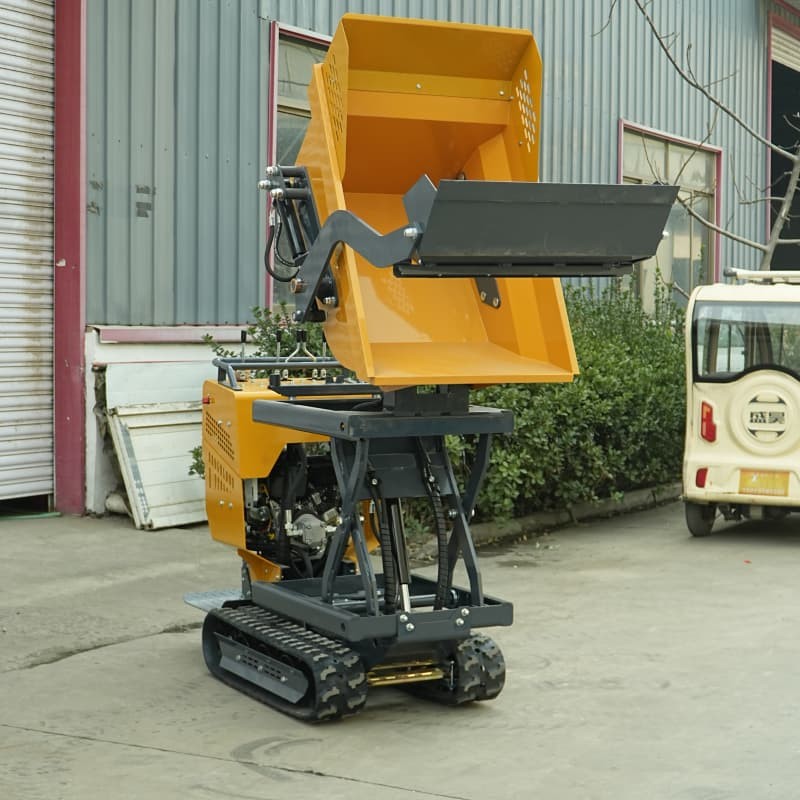

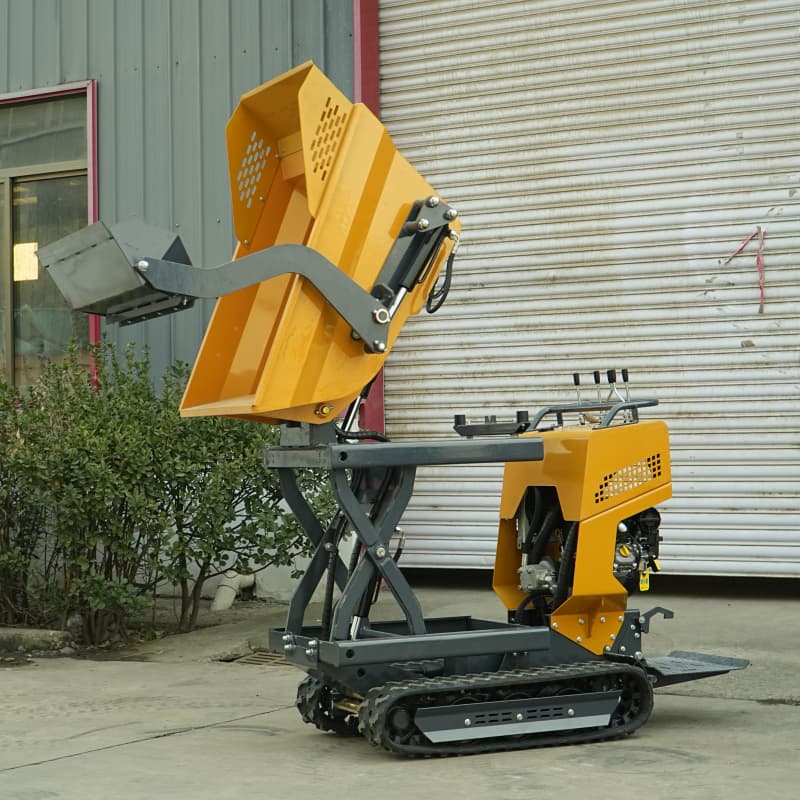

Scissor Lift Frame
Double-layer scissor design for stable lifting. Maximum lift height is 1.5 meters, and unloading height is 1.3 meters - high enough to reach a mixer's feed hopper or a small truck's sideboard.
Reinforced Hydraulic Bucket
The bucket floor and front blade are made of thicker steel. When digging gravel or breaking down demolition debris, the bucket resists bending and warping.

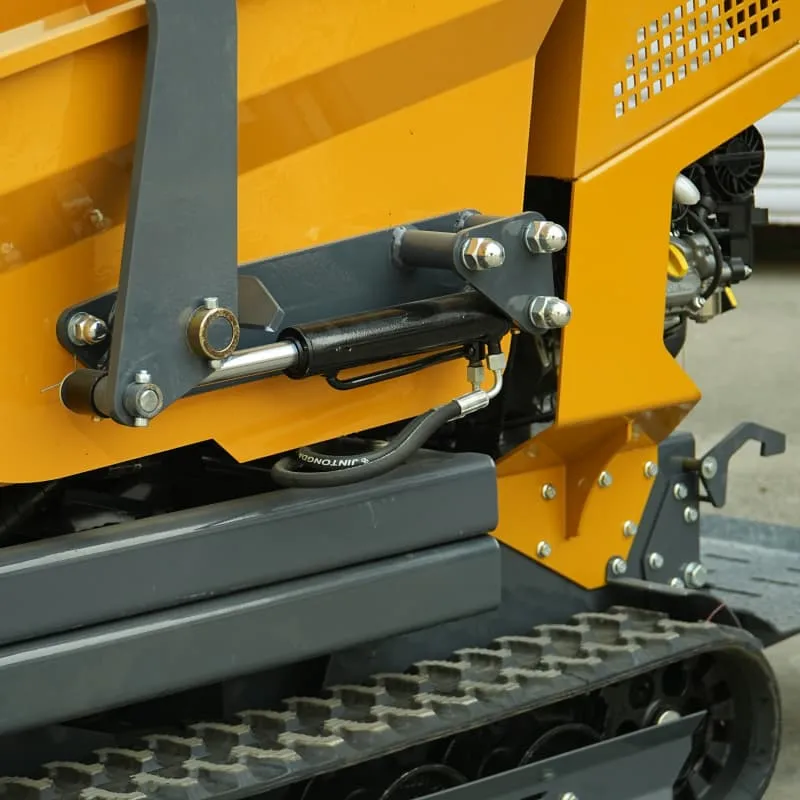

Two Hydraulic Cylinders
One controls the lift, the other controls the dump. They operate independently-you can raise the bucket all the way before dumping, or dump at a lower height depending on the job.
Four Control Levers
Four levers, one function each - simple and straightforward. Takes only five minutes to learn.

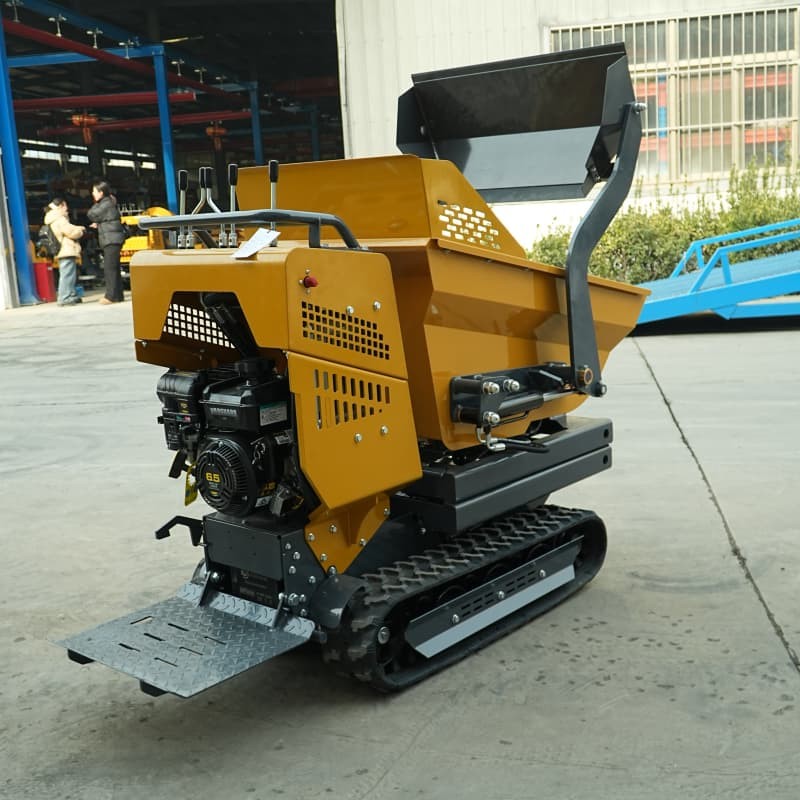

Foldable Foot Platform
Fold it down to stand and drive, fold it up for transport or container loading-saves over 20 cm in length.
Wear-resistant rubber tracks
The 180mm-wide rubber tracks won't damage surfaces. They leave no marks on concrete and can run on indoor tile floors. With one meter of ground contact, ground pressure is low, so the machine won't sink into soft mud.
Why buy the DM1000L High Tip Mini Dumper?
The lifting feature makes a real difference. A regular tracked dumper dumps onto the ground, and then you have to reload the material. The DM1000L dumps straight into a mixer or truck, eliminating one step. One person can now do what used to take two.
Narrow width fits tight spaces. At just 900mm wide, it fits through standard residential doors, small factory doors, and greenhouse aisles. Many tracked dumpers are 1 meter wide-those extra centimeters can make all the difference.
Engines from global brands. Briggs & Stratton, Honda, and Kopp-all have parts available worldwide. If something breaks, a local small engine repair shop can fix it. No need to wait for parts to be shipped from China.
Tracks outperform wheels on tough ground. Wheeled dumpers often get stuck on wet slopes, while tracked ones keep working. On gravel, sand, or muddy surfaces, the tracks won't spin out.
Export-ready packaging. Two options: wooden crate (fumigation-free, ready for export) or stackable steel frame-no waiting for fumigation certificates.
Product Applications
Construction Sites
Pour cement mortar into a mixer-drive the DM1000L up, raise the bucket, and dump. The material goes straight into the mixer's hopper. It can also feed bricks into a construction elevator or send sand up to scaffolding on the second floor.
Mines
Move crushed ore and rock without worrying about sharp debris puncturing tires-the tracked chassis handles it. With a 1000 kg load capacity, it carries a lot in one trip, much faster than pushing a manual cart.

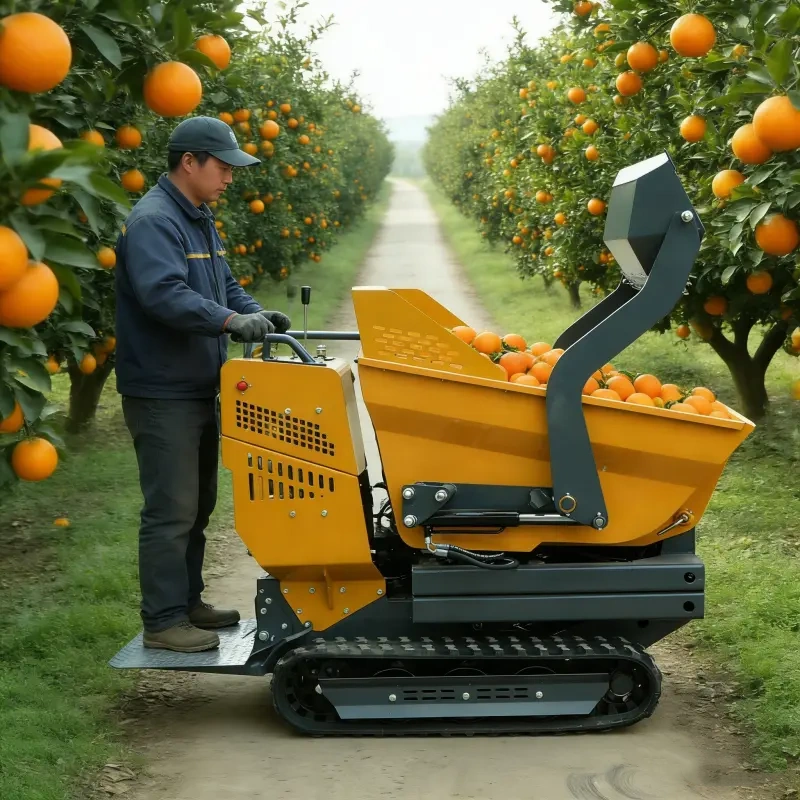

Farms & Orchards
Spread fertilizer efficiently. One load carries 500–600 kg of organic fertilizer. Drive right under a tree, raise the bucket, and dump a small pile-no need to climb off and shovel. Works the same way for moving potting soil inside a greenhouse.
Other Scenarios
Haul pavers for municipal road repairs, move waste in factories, clean out animal waste on farms, or transport bulk materials in warehouses. Wherever you need to dump loose material up high or into tight spaces, this machine performs the work of one person carrying plus another shoveling.
services we offer
7*24 hour service
Day or night, weekdays or weekends - send us a message and someone will get back to you. Time zones are not a problem.
One-Year Warranty
Within one year, if something breaks that isn't caused by misuse or normal wear and tear, we cover the repair or replacement. Exceptions apply to consumable parts such as tires, oil seals, and brake pads.
Multi-Language User Manual
The manual is available in English, Spanish, French, Arabic, and more. No need to translate it yourself - your crew can read it right away.
Genuine Factory Parts
We never use off-brand or generic replacement parts. The spare parts you receive are exactly the same as the ones originally installed on the machine.
Customer Review
A farmer from the US gave us a 5-star review; here are his exact words:
"We have a small orchard with heavy, clay-rich soil. While our wheeled utility vehicle always gets bogged down after the rain, this tracked dumper moves through without a hitch. This season, I've used it to haul over five tons of compost. It lives up to its rated 20-degree climbing capability, performing exceptionally well on our slopes."
Production workshop
FAQ
Q: How do I purchase spare parts? How long does international shipping take?
A: Common spare parts (oil seals, hydraulic pumps, tires, etc.) are shipped within 24 hours of order placement via DHL or FedEx; delivery to most countries typically takes 3–7 days.
Q: Exchange rates fluctuate significantly; can I lock in the exchange rate or settle in RMB?
A: Yes. We support cross-border RMB settlement (via the CIPS system), which is particularly suitable for clients in "Belt and Road" countries. You may also choose to receive quotes in USD, EUR, or RMB; quotes are valid for 7–15 days.
Q: How are the dump trucks shipped to my country? What is the MOQ?
A: Shipping is generally handled via 20-foot or 40-foot ocean containers.
A 20-foot container holds 2–3 units (depending on the model; some parts, such as the canopy, can be disassembled).
A 40-foot high-cube container holds 6–8 units.
MOQ: 1 unit (shipped in a wooden crate or frame container; LCL/consolidated shipping is available).
