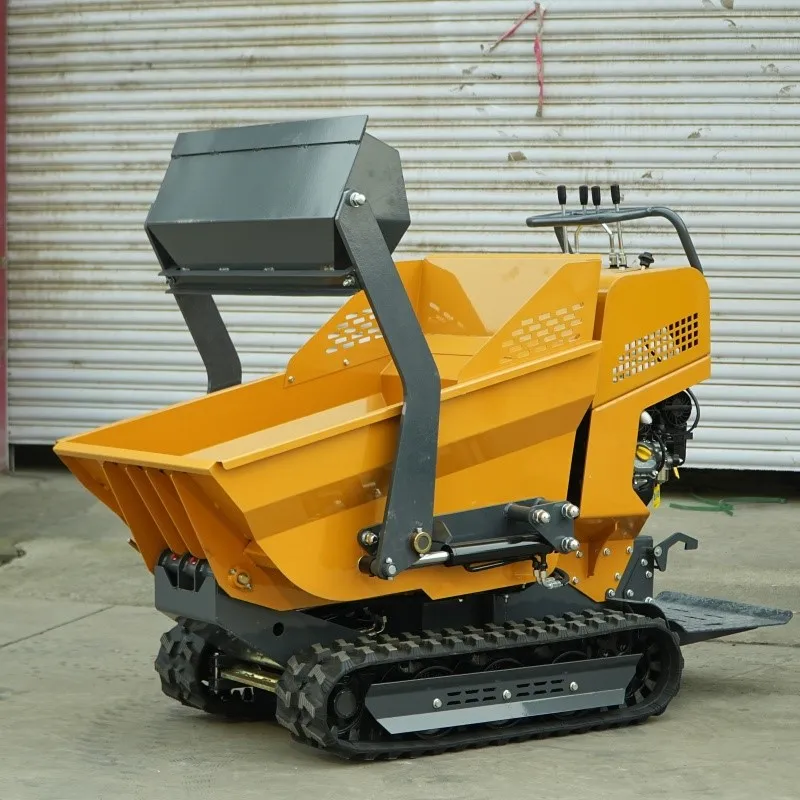

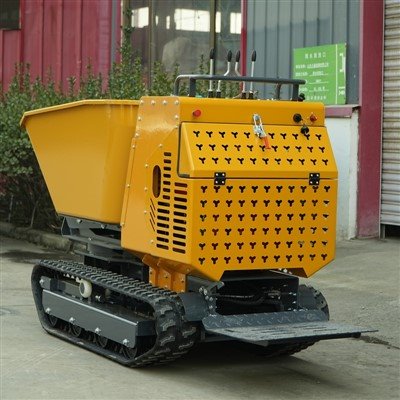

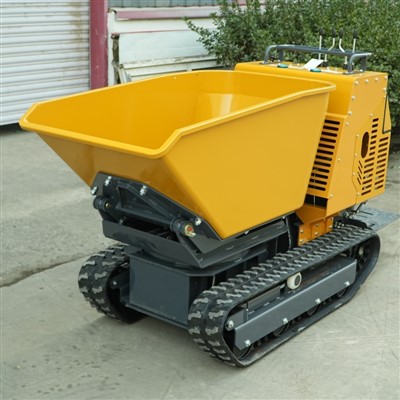

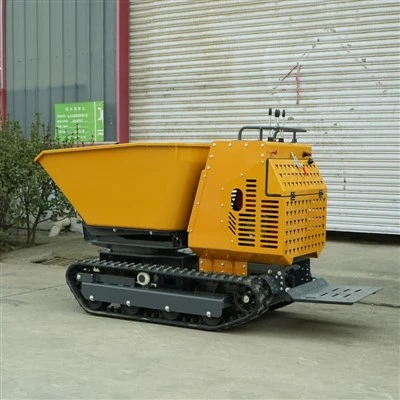

We designed the DM500 Self Loading Mini Dumper specifically for "last-mile" (or rather, "last-tens-of-meters") transport. What does this mean? It covers the gap between where materials are unloaded from a truck and the actual work site-a distance too short for large vehicles to enter, yet too slow to cover by manually carrying loads bucket by bucket. The DM500 fills this niche perfectly.
Weighing 414 kg with a 500 kg payload, it offers an impressive load-to-weight ratio. Its compact 700 mm width allows it to pass through standard double doors and navigate narrow factory aisles. The 900 mm track contact length ensures low ground pressure, preventing it from getting bogged down. It is powered by reliable engines from brands like Briggs & Stratton, Kohler, or Runtong-all well-known for easy maintenance and parts availability. Operation is simple: the operator stands on the platform and uses a control lever to drive, while the hydraulic skip handles dumping automatically.
Products Specifications
| Item | Specifications |
| Model | DM500 |
| Net Weight | 414 kg |
| Max. Load Capacity | 500 kg |
| Skip Capacity | 200 dm³ |
| Chassis Width | 700 mm |
| Track Width | 180 mm |
| Track Contact Length | 900 mm |
| Ground Clearance | 110 mm |
| Dumping Method | Hydraulic Self-Dumping |
| Dumping Angle | 90° |
| Discharge Height | 260 mm |
| Travel Speed | 2.88 km/h |
| Min. Turning Radius | 1.15 m |
| Track Center Distance | 520 mm |
| Gradeability | 20° |
| Machine Dimensions (L × W × H) | 2050 × 880 × 1300 mm |
| Skip Dimensions (L × W × H) | 1050 × 730 × 730 mm |
Plan view
Engine (Standard)
Model: Briggs & Stratton Pioneer
Type: Single-cylinder, OHV, 4-stroke, air-cooled
Displacement: 203 cc
Rated Power: 6.5 HP / 3600 rpm
Fuel: 92# Gasoline
Fuel Tank Capacity: 3.6 L
Product Features

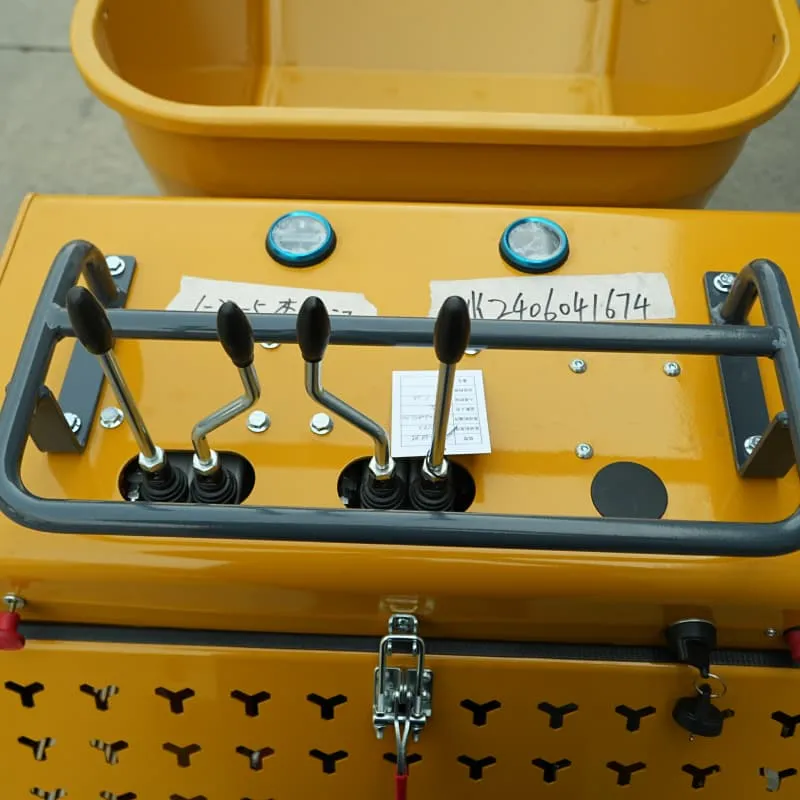

Hydraulic Control Console
Control levers connect directly to the hydraulic system, requiring minimal effort to push or pull. The skip tilts automatically when the lever is held, eliminating the need for manual tipping.

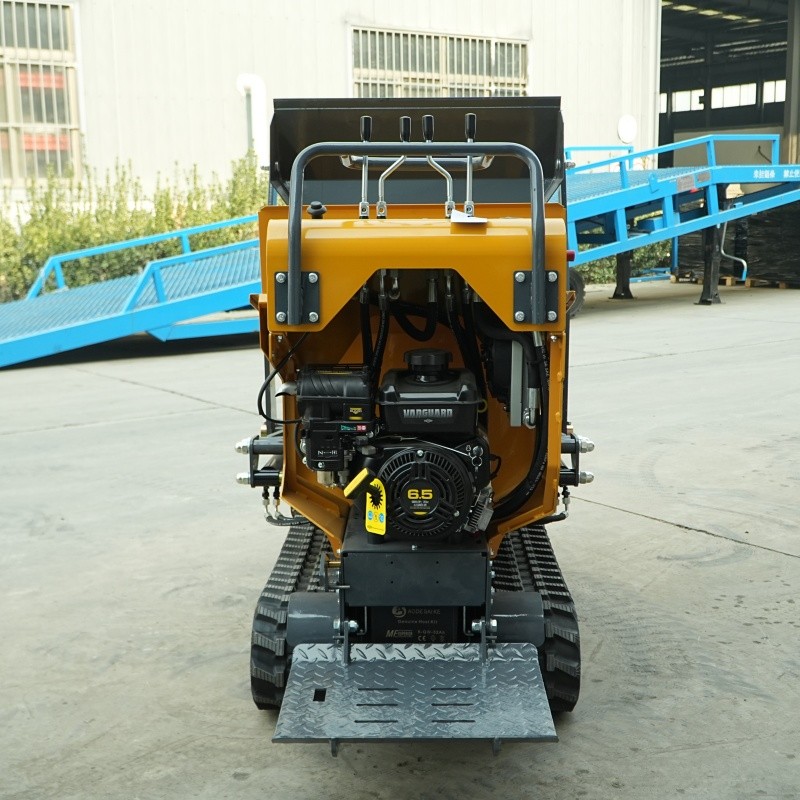

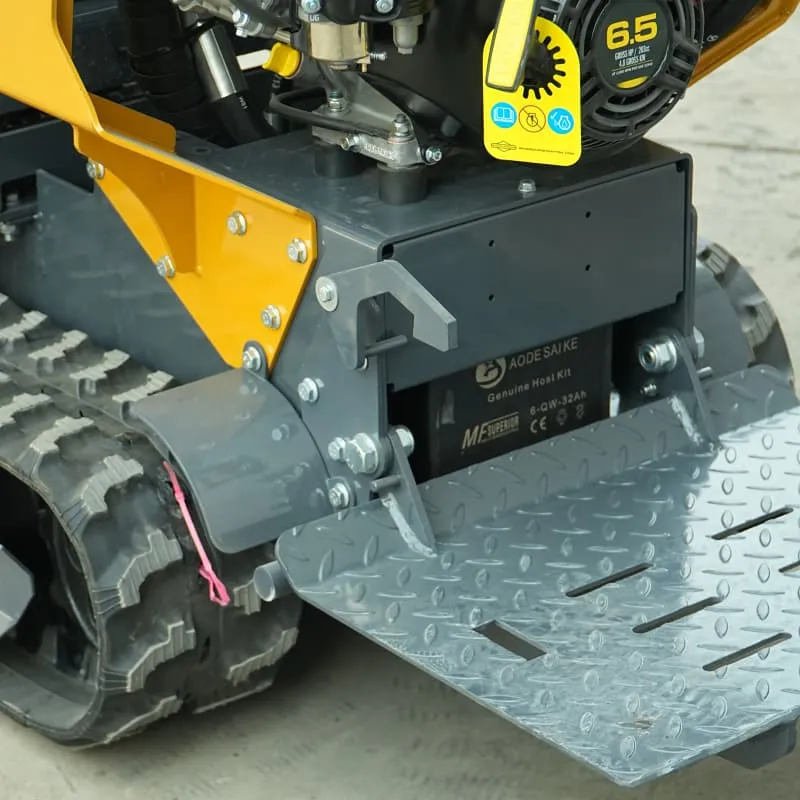

Standing Platform
Designed for standing operation rather than sitting. This provides excellent visibility and allows for quick mounting and dismounting. The platform features an anti-slip tread pattern to ensure safety even with muddy footwear.
Reinforced Body
Both the base plate and side panels are constructed from thickened steel plating. It is not the kind of flimsy equipment that dents easily from a single shovel-load of crushed stone. The body resists deformation even after years of hauling sand, gravel, and broken bricks.
Wear-resistant rubber tracks
180mm-wide rubber tracks with a 900mm ground contact length. They do not sink in mud and leave no black marks on concrete surfaces. The wear-resistant compound extends the service life by hundreds of hours compared to standard rubber.
Customization Options
Buying a stock Self Loading Mini Dumper is convenient, but sometimes off-the-shelf models fall just a little short of your needs. The DM500 supports the following customizations-just let us know what you're looking for.
1. Engine brand
It comes standard with a Briggs & Stratton engine. If you prefer a Kipor 173, Runtong 212cc, or already have a spare engine from another brand, we can swap it in. We use a universal mounting design, so changing brands doesn't require modifying the base.
2. Machine color
The standard colors are orange and black. If you want a different color-such as your company's brand colors, a site-specific scheme, or even fluorescent yellow-just provide the color code, and we'll paint it accordingly. There is no extra cost, just a two-day extension to the production time.
3. Starting mechanism
It comes standard with a recoil (pull) starter. If you prefer the convenience of turning a key to start the engine, you can opt for the electric start version. This saves you the effort of pulling a cord in cold weather.
4. Electric drive
If you have special requirements-such as remote-controlled movement or a need for electric power in enclosed spaces where fuel engines aren't allowed-we can convert it to an electric drive system. This falls under deep customization; we can discuss the specific parameters individually.
Inquire separately for other customizations
Whether it's cargo bed dimensions, adding protective mesh, or changing track materials, just let us know your requirements, and we'll see what's possible.
Why choose the DM500?
Narrow profile, greater accessibility
With a width of just 700mm, it can navigate spaces where standard dumpers can't-such as small doorways, narrow alleys, and greenhouse aisles. If you frequently work in older residential complexes, on indoor renovation projects, or in small workshops, this compact width is a genuine advantage.
Easy-to-service engine
DM500 Self Loading Mini Dumper is equipped with engines from brands like Briggs & Stratton, Kohler, or Rato. Parts for these brands are readily available at overseas landscaping equipment dealers and small engine repair shops, so you won't have to wait for us to ship replacements from China.
Hydraulic tipping - no manual dumping
Many small dumpers rely on manual tipping, which is physically demanding when the hopper is full of sand or gravel. The DM500 features a hydraulic system; simply push a lever to tip the hopper, unload completely, and pull the lever back to reset.
Ready for direct export
Shipped in fumigation-free wooden crates or stacked on steel frames. There is no need to wait for fumigation certificates; the units can be loaded and shipped immediately without missing shipping schedules.

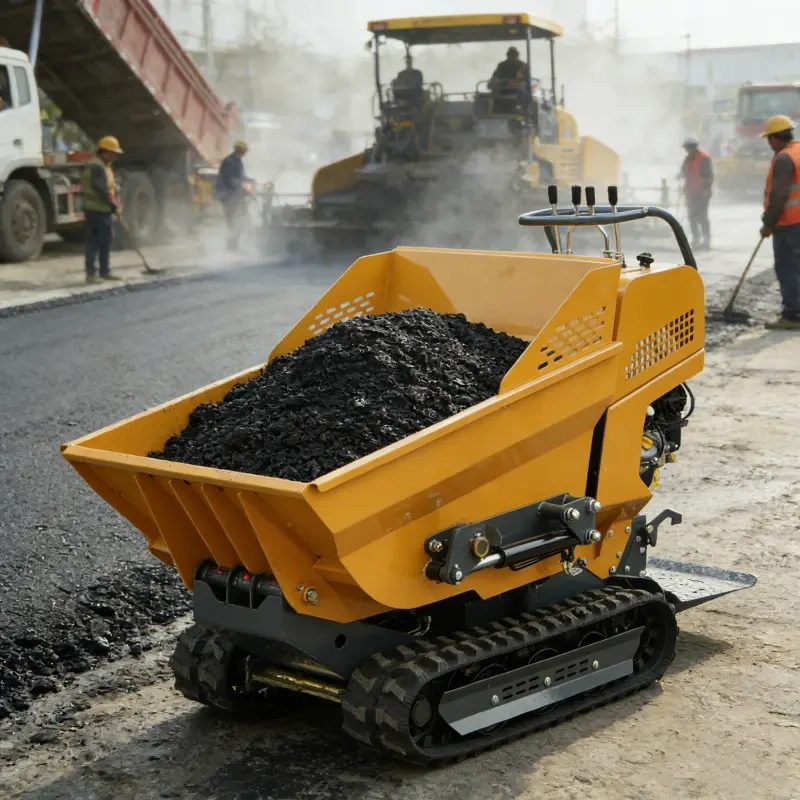

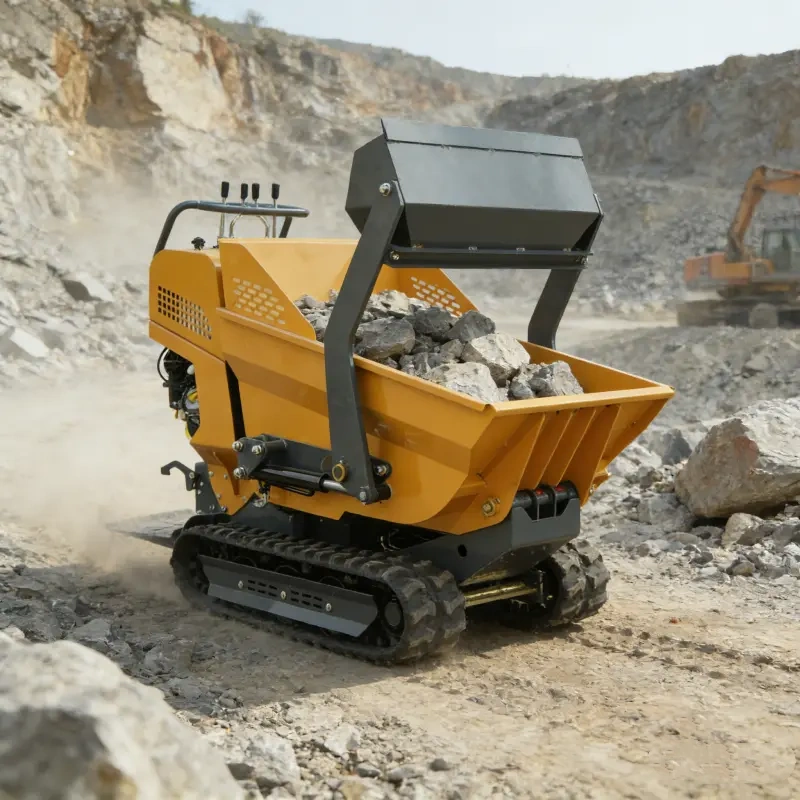

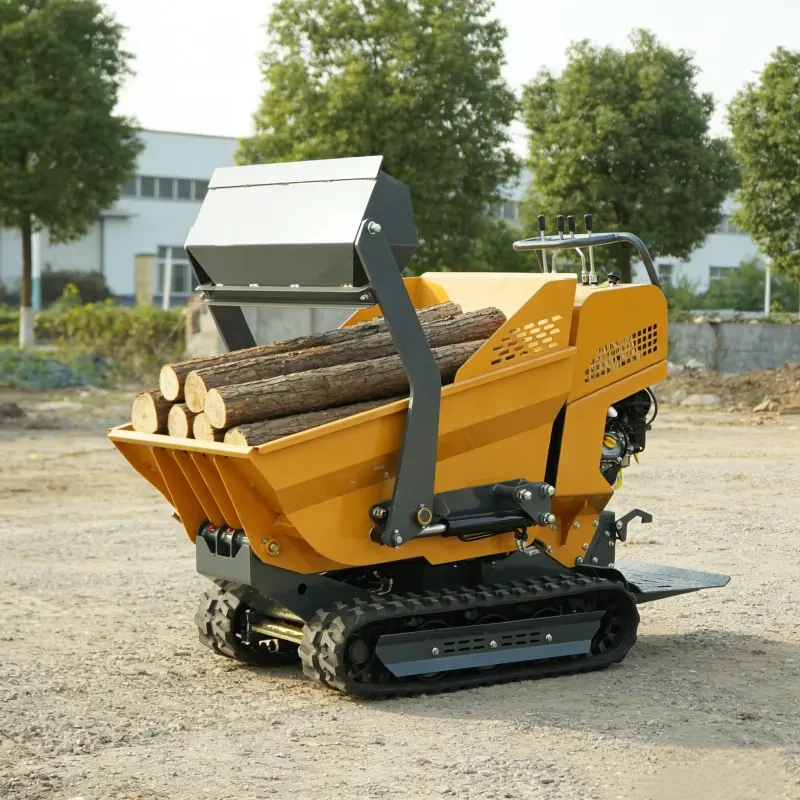

Product Applications
FAQ
Q: What international payment methods do you accept?
A: We support all major methods:
T/T (Telegraphic Transfer): For first-time orders, we recommend a 30% deposit and 70% balance upon presentation of the Bill of Lading copy.
L/C (Letter of Credit): We accept irrevocable L/C at sight (subject to the issuing bank being acceptable to us).
Western Union / PayPal: Suitable only for samples or orders under $3,000 USD.
Q: How long does sea shipping take? Can you deliver to my job site?
A:
Lead time: 15–20 days for standard models; approx. 25–30 days for customized units (special colors, fuel tanks, bucket capacities).
Shipping time:
Southeast Asia: 7–12 days
Middle East/Africa: 20–30 days
Europe/USA: 30–45 days
For delivery to the job site, you will need to arrange local truck transport yourself; we can provide advice on unloading (e.g., carrying simple ramps with the vehicle).
Q: What should I do if the machine arrives with shipping damage (bumps/scratches) or moisture damage?
A: Please photograph the container unloading process and the damaged areas of the machine *before* signing for the delivery.
If caused by improper packaging: We will cover repairs or send replacements.
If damaged during shipping: You will need to file a claim with the insurance company using the pre-shipment inspection report we provide along with evidence of the damage (we can assist with this if the terms are CIF).
