Product Showcase

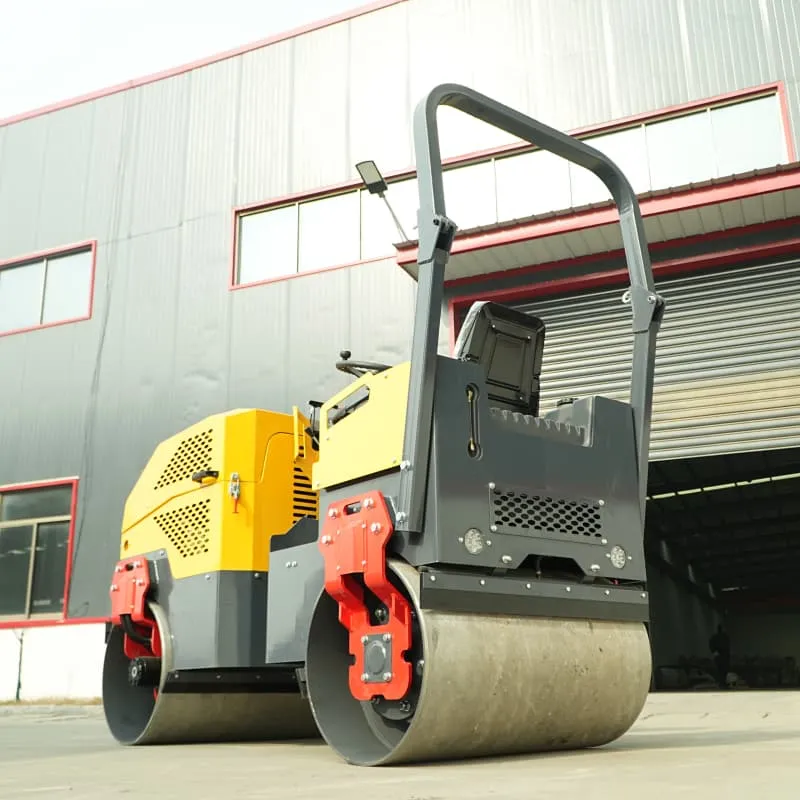

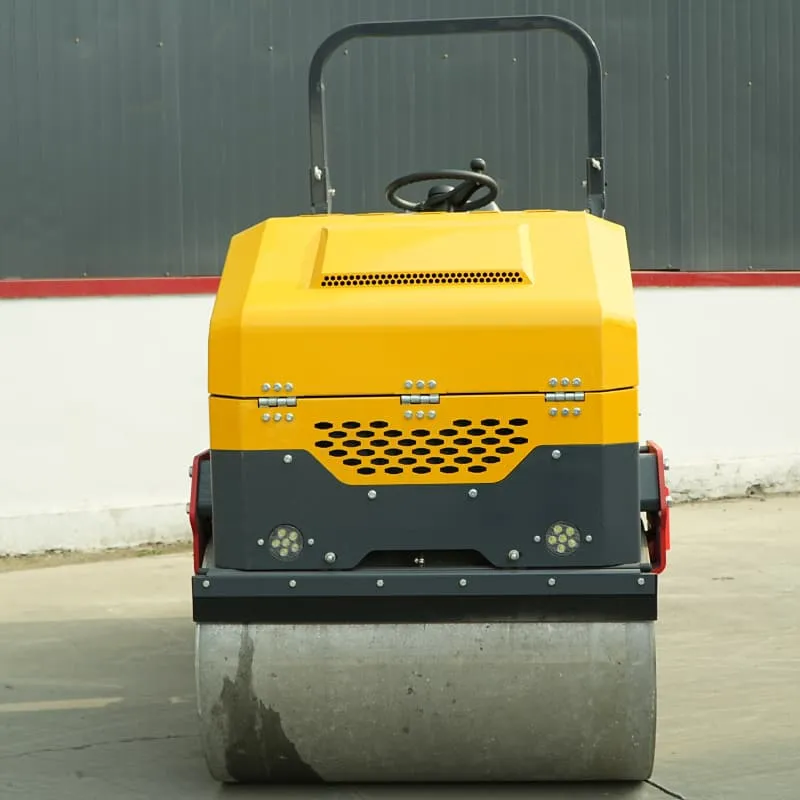

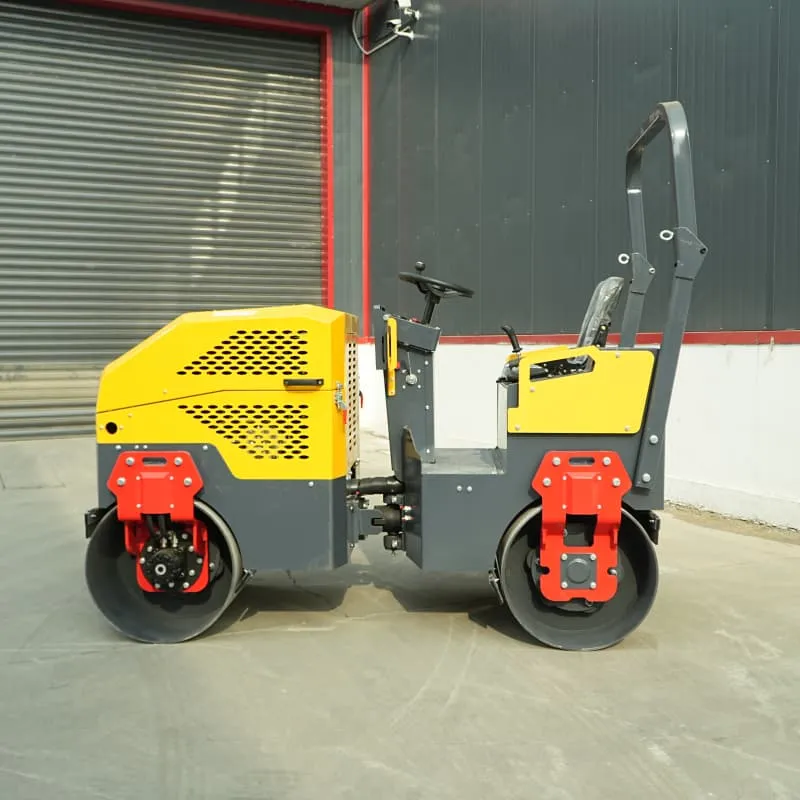

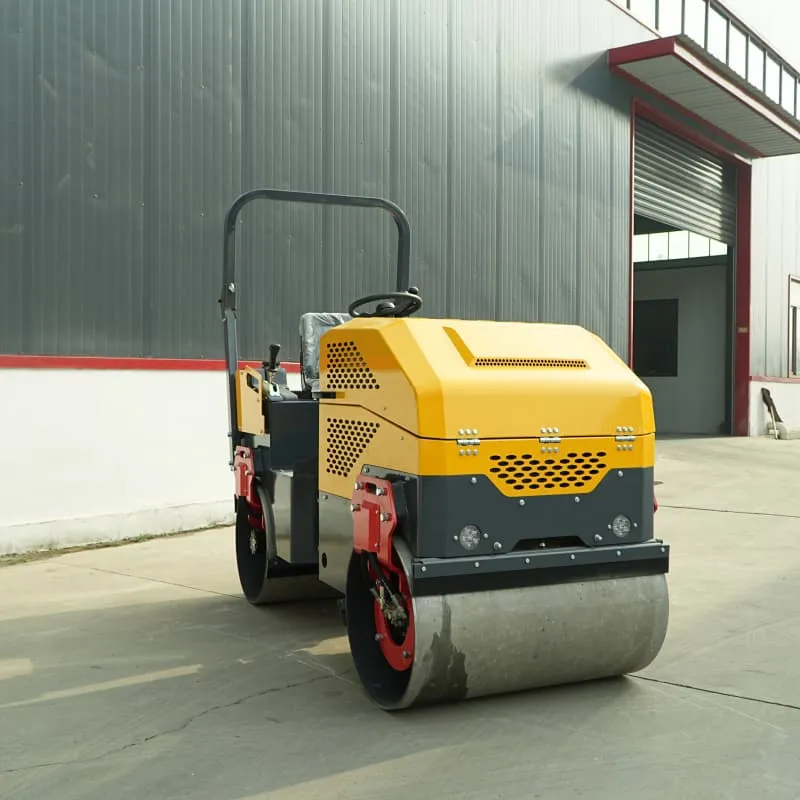

Product Views from Various Angles
Video Demonstration
Products Specifications
| Parameter | Specifications |

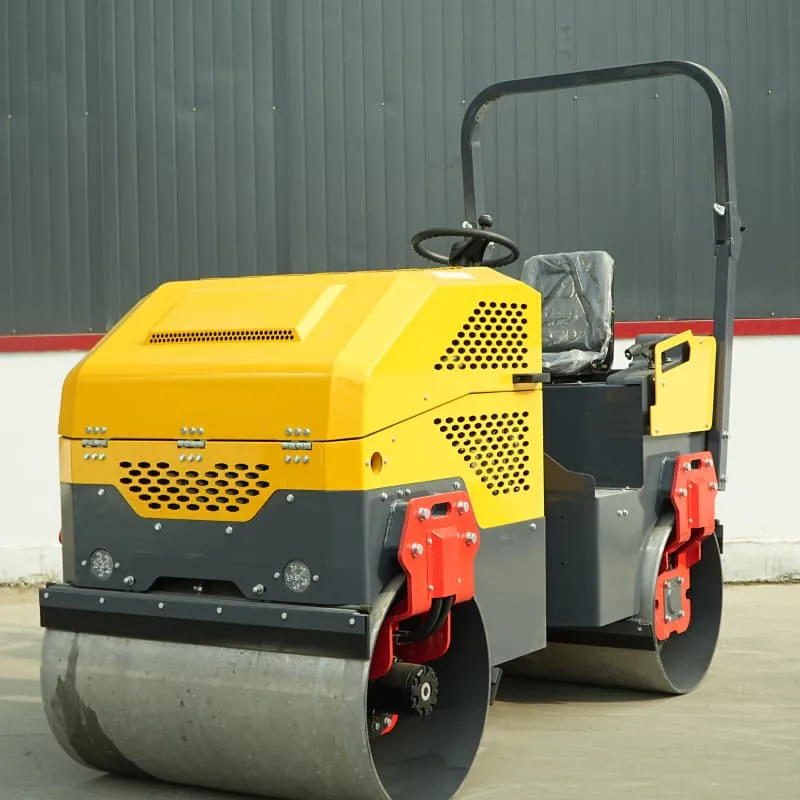

| Model | DR2000H mini vibratory road roller |
| Engine | Changchai 390 (Vertical 3-Cylinder, Water-Cooled Diesel) |
| Power Output | 39 HP / 2600 rpm |
| Travel Speed | 0 - 12 km/h |
| Turning Radius | 2300 mm |
| Gradeability | 30% |
| Nominal Amplitude | 0.5 mm |
| Vibration Frequency | 70 Hz |
| Exciting Force | 35 kN |
| Drum Width (Front/Rear) | 1000 mm |
| Drum Diameter (Front/Rear) | 610 mm |
| Water Tank Capacity | 108 L |
| Hydraulic Oil Tank Capacity | 26 L |
| Fuel Tank Capacity | 26 L |
| Operating Weight | 1750 kg |
| Net Weight | 1580 kg |
| Overall Dimensions (L × W × H) | 2350 × 1120 × 1600 mm (Excluding Roll-over Protection Bar) |
Engine Options: Changchai 390, Honda GX690, Briggs & Stratton 3864, Kubota D1105; supports China Stage II / Stage IV, EPA, and Euro V emission standards. Contact us today to learn about customization options or to request a quote!
Products Details
Key Features

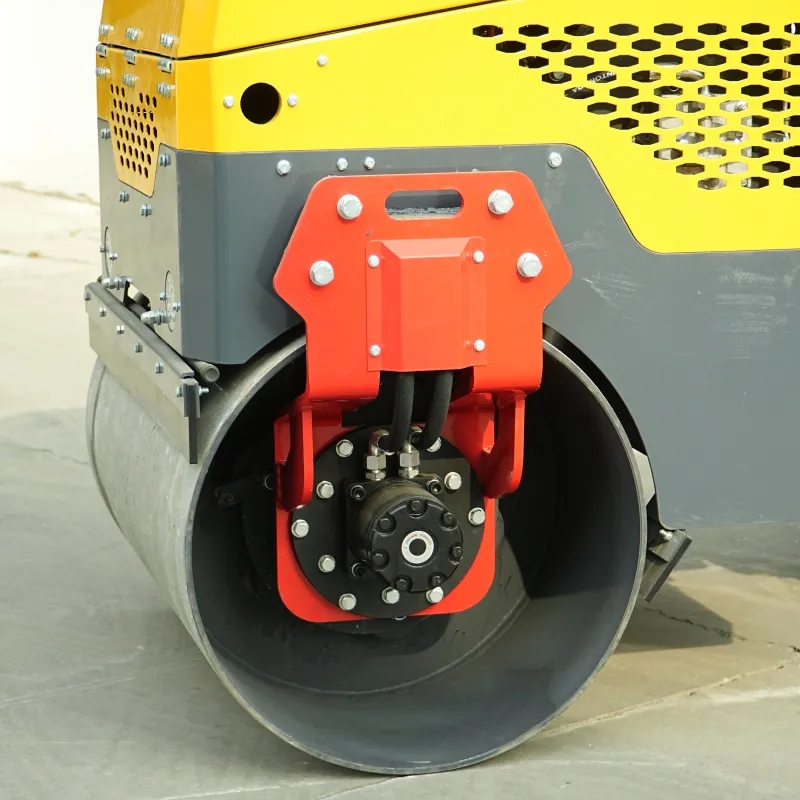

Hydraulic Front-Wheel Vibration: Delivers a 35kN excitation force at a high frequency of 70Hz. When paving asphalt, a single pass is sufficient to achieve a smooth, level surface-eliminating the need for repetitive back-and-forth rolling.

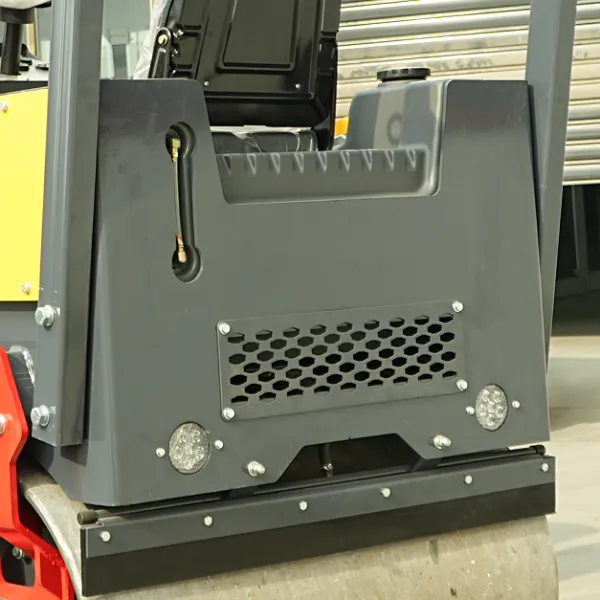

108L Rotomolded Water Tank: A single fill provides enough water for spraying for over half a day, minimizing the need for frequent refills. Constructed via rotomolding, the tank is highly durable and virtually unbreakable.

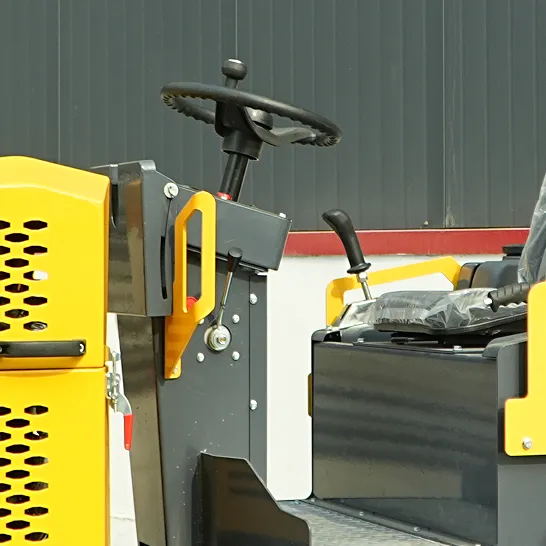

Manual Parking Brake: Simple, robust, and reliable-ensures the roller remains securely parked on inclines without rolling away.

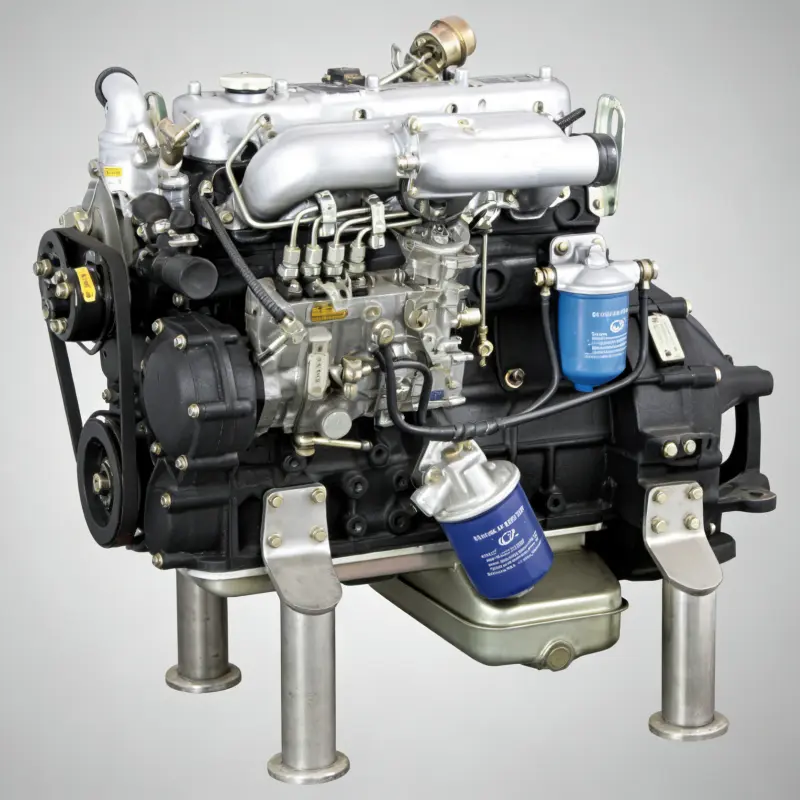

Multiple Engine Options: We can equip the roller with the engine brand best supported by local service centers in your region-including Honda, Kubota, or Briggs & Stratton.
Electronically Controlled Pressurized Water Spray: Unlike gravity-fed drip systems, this pressurized system ensures uniform water distribution. This prevents asphalt from sticking to the wheels during paving operations and conserves water.
26L Fuel Tank + Fuel-Efficient Engine: Work a full day without needing to refuel. With a fuel consumption rate of just 300g/kWh, it offers significant fuel savings compared to older diesel engine models.
our products advantages
Accesses Narrow Spaces, Handles Wide Areas
With a total width of just 1.12m, this roller can easily access residential sidewalks, areas around manhole covers, and tight corners within factory complexes. Yet, with a steel drum width of 1m, its operational efficiency rivals that of much larger machines.
Fatigue-Free Operation
Featuring hydraulic steering, a steering wheel control interface, and a shock-absorbing seat, the roller requires no strenuous effort to maneuver. A gentle turn of the wheel is all it takes to navigate curves, making it easy for even novice operators to handle. After a full day of work, operators won't suffer from back pain or arm fatigue.
Minimal Refueling and Refilling
Equipped with a 108L water tank and a 26L fuel tank, the roller can operate continuously from morning until the end of the workday on a single fill. Unlike smaller machines that require water refills up to three times a day, this model keeps you working without interruption.
Flexible Configuration Options
Choose from a variety of engine brands and emission standards to meet specific regulatory requirements. This flexibility ensures the roller complies with certification standards for export to markets across the Americas, Europe, and Southeast Asia.
Product Applications
The DR2000H Mini Vibratory Road Roller is suitable for use in the following areas:
Residential community roads and villa driveways
Municipal repair projects and areas surrounding manhole covers
Parking lots and industrial facility flooring
Rural roads and field paths

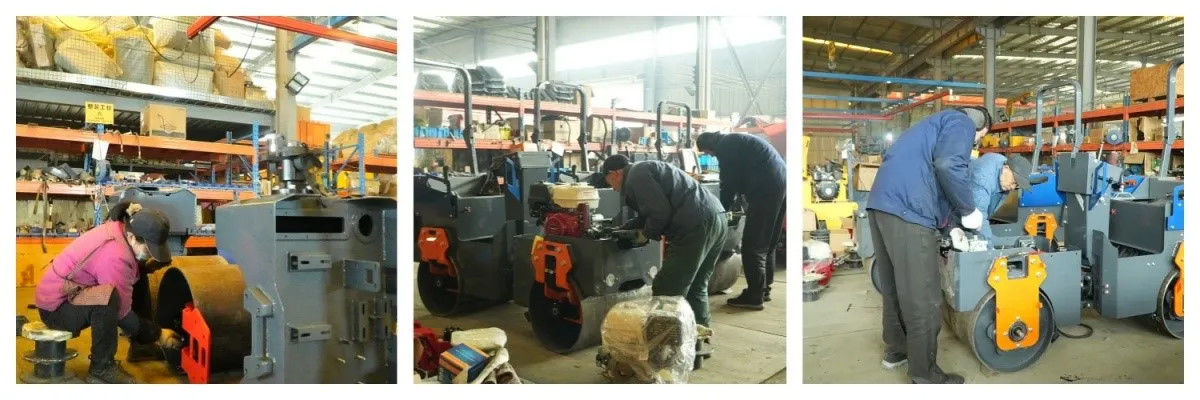

Production Showcase

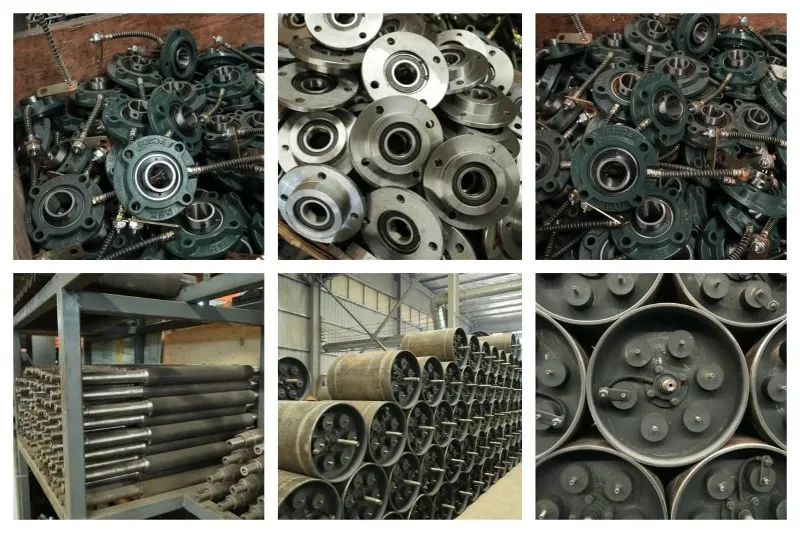

Component Showcase
Customer Reviews
USA– John
"Small but strong. Gets the job done."
Canada – Luc
"Starts easy. Runs smooth. No complaints."
Australia – Dave
"Needed something narrow for footpaths and backfill jobs. This DR2000H mini vibratory road roller fits right in. Easy to steer, good on fuel, and the seat doesn't kill my back after a full day. Would buy again."
UK - Paul
"Got two of these for my rental fleet. Customers love them – simple controls, reliable start, and the lights work great for winter dark afternoons. Only complaint? They come back fully booked every week."
Delivery Date
| LCL (Less than Container Load) / Loose Cargo | Typically 25–35 days to most ports |
| FCL (Full Container Load) | As fast as 20–30 days |
| Air Freight | 1–2 weeks (Due to the high shipping costs for such heavy machinery, this method is not recommended.) |
FAQ
What is the warranty coverage?
The complete machine comes with a warranty of 12 months or 1,000 working hours (whichever comes first). Consumable parts (such as belts, spray nozzles, and brake pads) are not covered under the warranty; however, we can supply replacements for these items at cost price.
What is the MOQ?
1 unit.
Can I have my own brand logo applied to the machine?
Yes. Typically, for orders of 5 units or more, we will affix the decals and stickers you provide prior to shipment. Specific details can be discussed on an individual basis.
